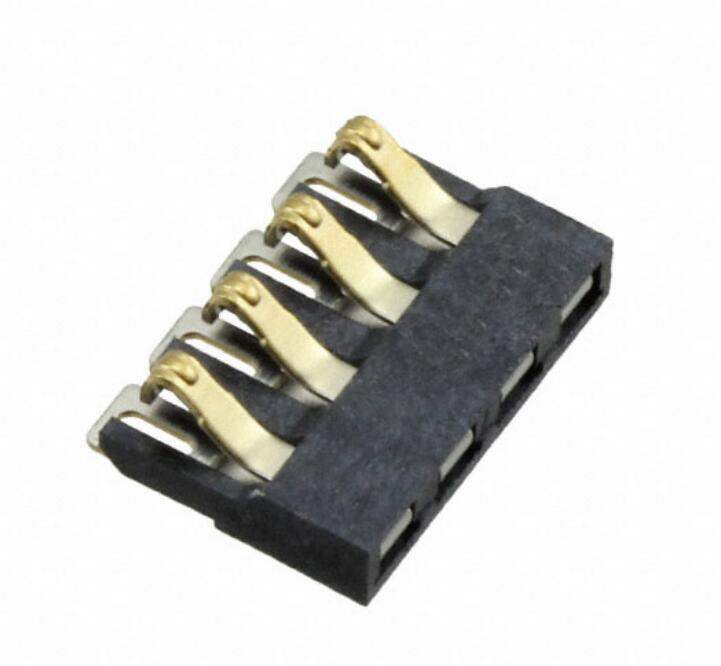

0472861001 Molex
Same model may have multiple batches, images only for reference.

0472861001

Part No 0472861001
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN SPRING BATTERY 4POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201835-0472861001
Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Spring Loaded
Series 47286
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Battery Contact
Pitch 0.079" (2.00mm)
Mounting Type Surface Mount
Material Copper Alloy
Ultra Librarian 3D Model Ultra Librarian 0472861001 CAD Model

Description

The 47286 connector series by Molex is a reliable solution for rectangular connectors with spring-loaded contacts.

  • Pitch: 0.079" (2.00mm)
  • Application: Battery Contacts
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR), Cut Tape (CT), or Digi-Reel®
  • Material: Copper Alloy
  • Manufacturer: Molex
  • Product Status: Active
