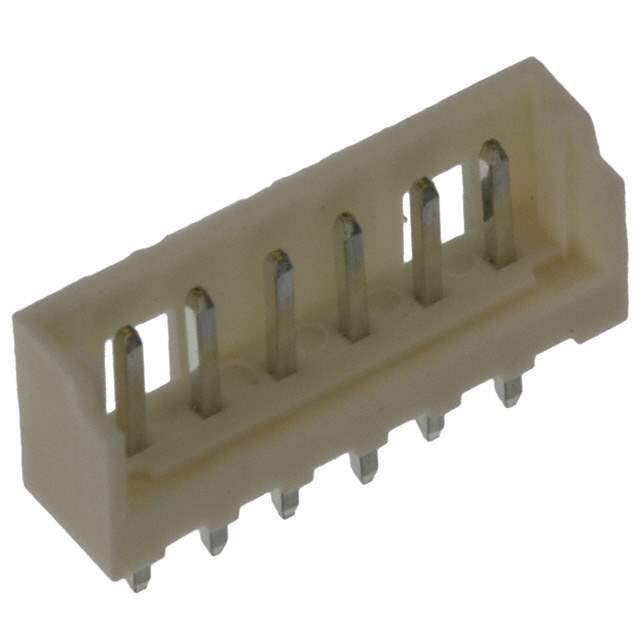

The 1380918-0532530670 is a male pin header connector from the Micro-Latch 53253 series. It has 6 positions and is suitable for various applications including automotive and general purpose. The connector features a detent lock fastening type and has a shrouded 3-wall design. It is made of brass and has a tin finish. The connector is through-hole mountable and has a pitch of 0.079 inches (2.00mm). The contact length is 0.130 inches (3.30mm) for mating and 0.138 inches (3.50mm) for the post. The overall contact length is 0.331 inches (8.40mm) and the insulation height is 0.217 inches (5.51mm). The connector is rated at UL94 V-0 for material flammability. Please note that the temperature range for operating is not specified. The HTSUS code is 8536.69.4040. The standard package includes 1 piece.

• Series: Micro-Latch 53253
• Contact Gender: Male
• Number of Positions: 6
• Applications: Automotive, General Purpose
• Fastening Type: Detent Lock
• Design: Shrouded 3-Wall
• Contact Material: Brass
• Contact Finish: Tin
• Mounting Type: Through Hole
• Pitch: 0.079 inches (2.00mm)
• Mating Contact Length: 0.130 inches (3.30mm)
• Post Contact Length: 0.138 inches (3.50mm)
• Overall Contact Length: 0.331 inches (8.40mm)
• Insulation Height: 0.217 inches (5.51mm)
• Material Flammability Rating: UL94 V-0
• Standard Package: 1 piece
