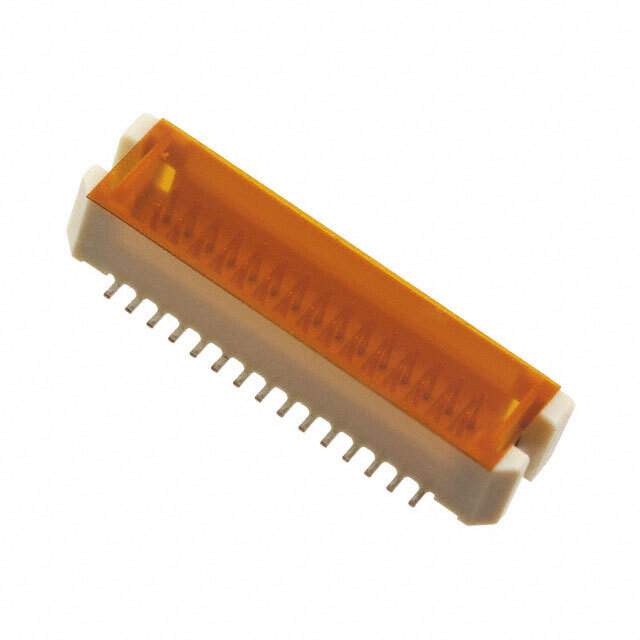

The 853310-0535053071 is a header male pin connector from Molex, LLC.

• Series: Pico-Gold 53505
• Positions: 30
• Features: Board guide, pick and place, and solder retention
• Connector Type: Male pin
• Termination: Solder
• Fastening Type: Push-pull
• Packaging: Tape & reel
• Contact Material: Phosphor bronze
• Contact Finish (Mating): Gold, 78.7µin (2.00µm) thickness
• Contact Finish (Post): Tin, 39.4µin (1.00µm) thickness
• Insulation Material: Polyamide (PA), nylon, glass filled
• Insulation Height: 0.191" (4.85mm)
• Contact Shape: Square
• Mounting Type: Surface mount
• Shrouding: Shrouded - 4 wall
• Pitch: 0.049" (1.25mm)
• Row Spacing (Mating): 0.055" (1.40mm)
• Standard Package: 1,000 pcs
• HTSUS Code: 8536.69.4040
• Product Status: Obsolete
