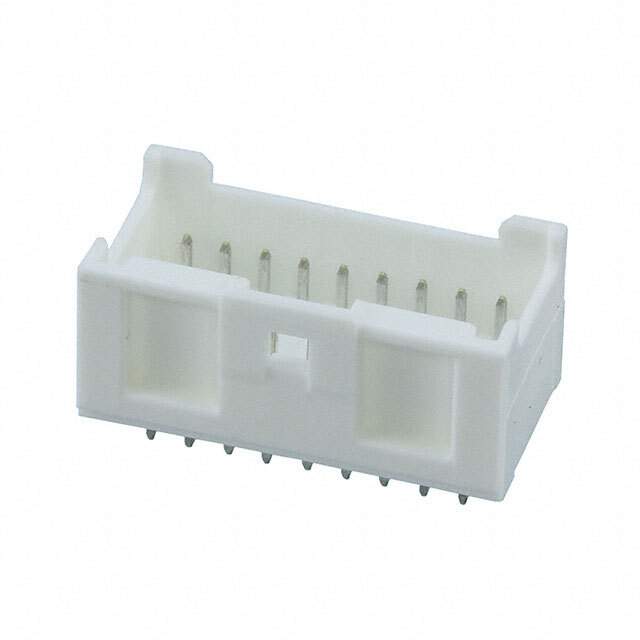

0559171830

Get a Quote

Part No	0559171830
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 18POS 2MM / Connector Header Through Hole 18 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	MicroClasp 55917
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	18
Number of Rows	2
Row Spacing - Mating	0.197" (5.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.150" (3.81mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.366" (9.30mm)
Insulation Height	0.384" (9.75mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	-
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	13.2mm
Contact Finish Thickness - Post	-
Applications	General Purpose, Industrial, Medical
Base Product Number	055917
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	600 pcs
Win Source Part Number	1380943-0559171830
Ultra Librarian 3D Model	Ultra Librarian 0559171830 CAD Model

Alternative Products

Description

The MicroClasp 55917 series is a high-quality header connector designed for various applications such as general purpose, industrial, and medical.

Positions: 18
Contact Gender: Male
Contact Type: Pin
Positions Loaded: All
Number of Rows: 2
Termination Style: Kinked Pin, Solder
Fastening Type: Latch Holder
Pitch: 0.079" (2.00mm)
Contact Finish: Tin
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color: Natural
Mounting Type: Through Hole
Contact Shape: Square
