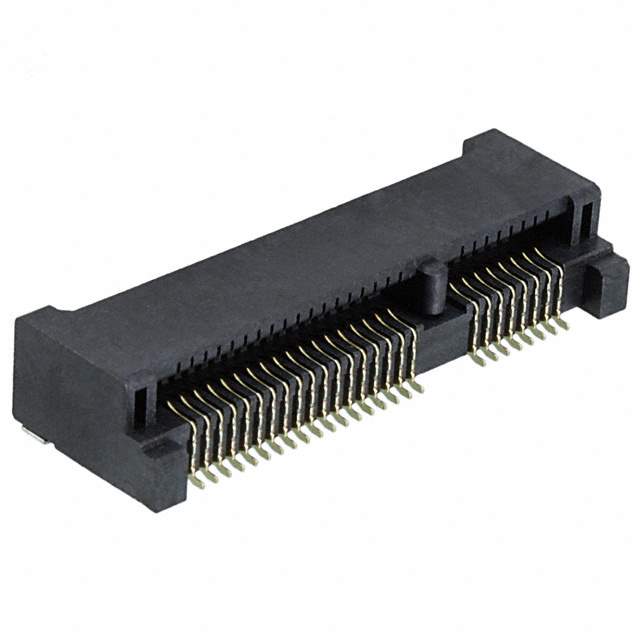

Same model may have multiple batches, images only for reference.

0679105700

Name: 0679105700
Brand: Molex, LLC
SKU: 849270
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0679105700
Manufacturer	Molex, LLC
Catalog	Card Edge Connectors - Edgeboard Connectors
Description	CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Datasheet	0679105700 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr	Molex, LLC
Series	67910
Package	Tape & Reel
Product Status	Active
Card Type	PCI Express Mini Card
Gender	Female
Number of Positions	52
Card Thickness	0.039" (1.00mm)
Number of Rows	2
Pitch	0.031" (0.80mm)
Read Out	Dual
Features	Board Guide
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Color	Black
Temperature Range - Operating	-40°C ~ 80°C
Material - Insulation	Liquid Crystal Polymer (LCP)
Base Product Number	067910
Standard Package	350 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849270-0679105700
Ultra Librarian 3D Model	Ultra Librarian 0679105700 CAD Model

Alternative Products

Description

The 849270-0679105700 is an edgeboard connector from Molex, LLC.

Series: 67910
Positions: 52
Pitch: 0.031" (0.80mm)
Color: Black
Board Guide: Yes
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tape & Reel
Standard Package: 350 pieces
Gender: Female
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Application: PCI Express Mini Cards
Temperature Range: -40°C to 80°C
ECCN: EAR99
REACH Compliance: Unaffected
HTSUS Code: 8536.69.4040
Product Status: Active
