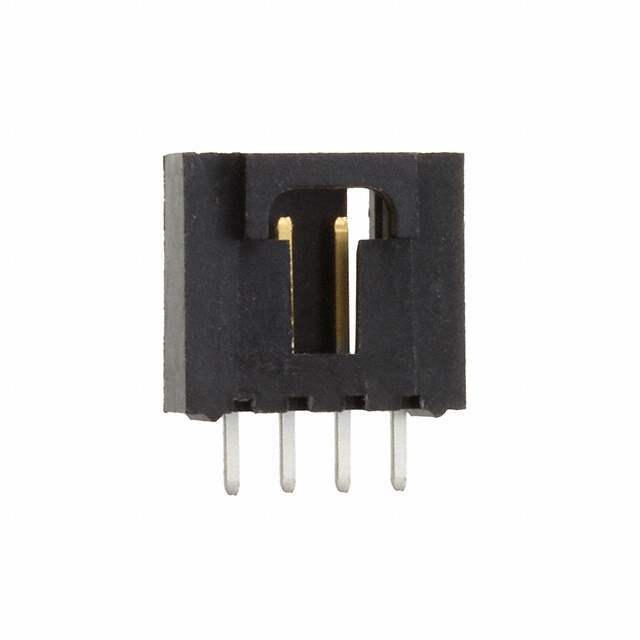

0705430003 Molex
Same model may have multiple batches, images only for reference.

0705430003

Part No 0705430003
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202589-0705430003
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series SL 70543
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Voltage Rating 250V
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 070543
Ultra Librarian 3D Model Ultra Librarian 0705430003 CAD Model

Description

The Molex SL 70543 header is a male pin connector used in rectangular connectors.

  • Series: SL 70543
  • Connector Type: Rectangular Connectors
  • Gender: Male Pin
  • Voltage Rating: 250V
  • Applications: Automotive, General Purpose, Industrial, and Medical
  • Status: Active
  • Package: Tube
