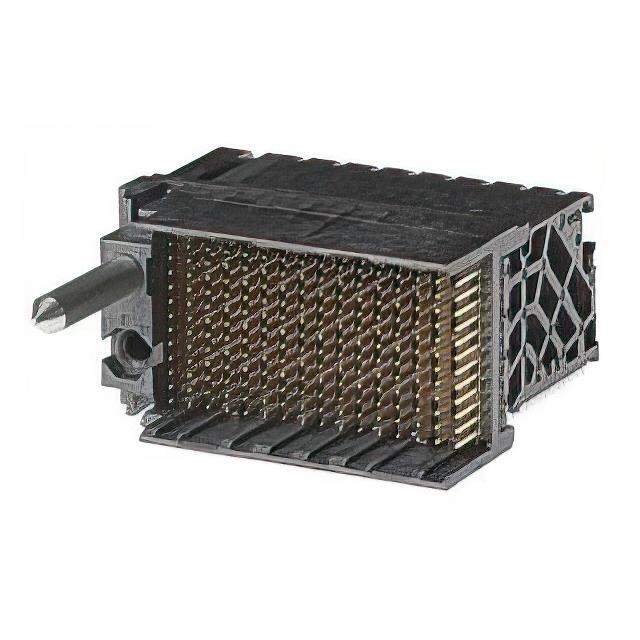

0765003607 Real Image1 0765003607 Real Image2
Same model may have multiple batches, images only for reference.
0765003607 Real Image1 0765003607 Real Image2
0765003607 Real Image1 0765003607 Real Image2
Same model may have multiple batches, images only for reference.

0765003607

Part No 0765003607
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description CONN HDR IMPACT 192POS EDGE MNT / 192 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black Impact, Guide Left
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Mfr Molex, LLC
Series Impact 76500
Package Tray
Connector Usage -
Connector Type Header, Male Pins
Connector Style Impact, Guide Left
Number of Positions 192
Number of Positions Loaded All
Pitch -
Number of Rows 12
Number of Columns 16
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 64 Differential Pairs
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Current Rating (Amps) -
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 30V
Base Product Number 076500
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 105 pcs
Win Source Part Number 1381174-0765003607
Ultra Librarian 3D Model Ultra Librarian 0765003607 CAD Model

Description

The Impact 76500 series specialized backplane connectors are designed for high-performance applications and manufactured by Molex, LLC.

  • Positions: 192
  • Rows: 12
  • Color: Black
  • Features: Board Guides
  • Contact Finish: Gold
  • Package Quantity: 105 pieces
