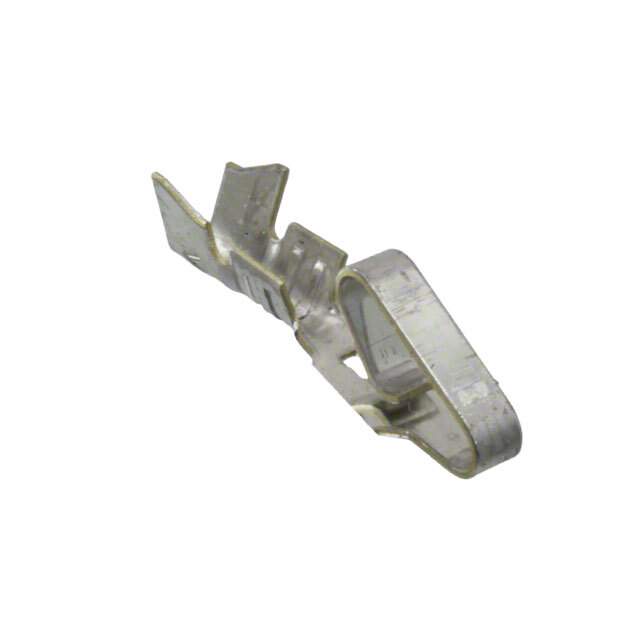

08-50-0105 Real Image
Same model may have multiple batches, images only for reference.

08-50-0105

Part No 08-50-0105
Manufacturer Molex, LLC
Catalog Terminals
Description 3.96mm Pitch KK® Crimp Terminal 2478, 18-24 AWG, Reel, Brass Tin (Sn)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal, Socket
Contact Gender Female
Contact Material Brass
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 5 A
Depth 3.3 mm
Gender Female
Height 4.79 mm
Lead Free Yes
Length 13.69 mm
Material Brass
Maximum Operating Temperature 50 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 1
Orientation Straight
Packaging Cut Tape
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Wire/Cable Gauge 18 AWG
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1038917-08-50-0105
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 08-50-0105 CAD Model

Description

Molex, LLC 1038917-08-50-0105 is a 1-contact female PCB signal socket connector.

  • Connector Type: PCB Signal Socket Connector
  • Number of Contacts: 1
  • Gender: Female
  • Voltage Rating: 250 V
  • Current Rating: 5 A
  • Length: 13.69 mm
  • Material: Brass
  • Termination: Crimped
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Maximum Operating Temperature: 50 °C
  • Minimum Operating Temperature: -40 °C
  • Mounting: Cable
