Same model may have multiple batches, images only for reference.

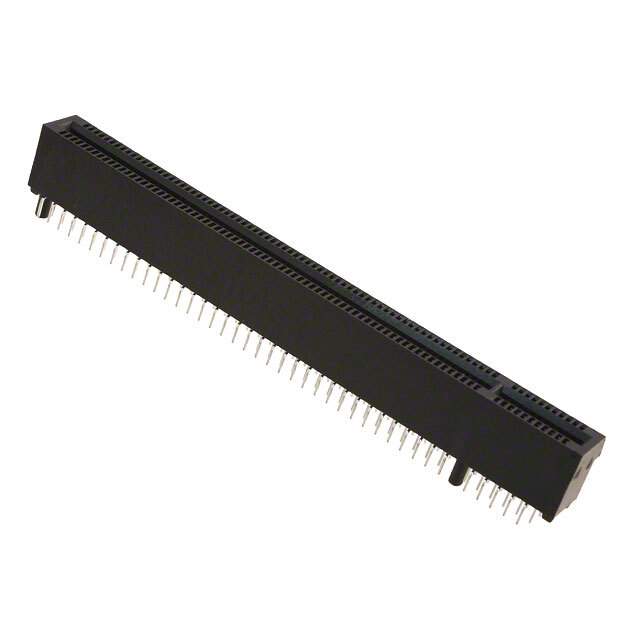

0877159306 Real Image
Same model may have multiple batches, images only for reference.

0877159306

Part No 0877159306
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 164POS 0.039
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 15 Weeks
Features 164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Manufacturer Molex, LLC
Series 87715
Package Tray
Operating Temperature Range -55°C ~ 85°C
Mounting Through Hole
Family Name 087715
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 087715-9306, 087715-9306-E, 0877159306-E, 87715-9306, 87715-9306-E, 87715-9306-TR42, 877159306, 877159306-E, WM9003
Quantity per package 630
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858458-0877159306
Ultra Librarian 3D Model Ultra Librarian 0877159306 CAD Model

Description

The Molex LLC 87715 is a 630 quantity per package 164 position female connector PCI Express™ gold 0.039" (1.00mm) black manufactured by Molex LLC.

  • Quantity per Package: 630
  • Positions: 164
  • Connector Type: Female
  • Application: PCI Express™
  • Contact Finish: Gold
  • Pitch: 0.039" (1.00mm)
  • Color: Black
  • Package: Tray
  • Category: Connectors
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • ECCN: EAR99
  • Estimated Production Lead Time: 15 weeks
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
