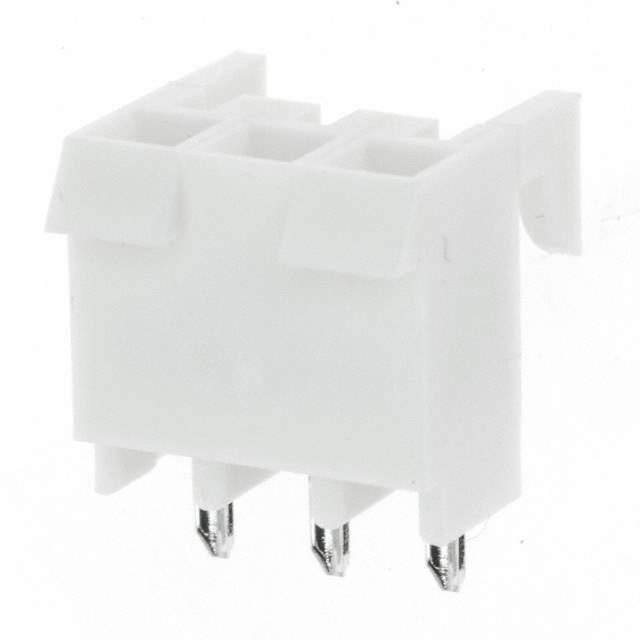

09-48-4038 Real Image
Same model may have multiple batches, images only for reference.

09-48-4038

Part No 09-48-4038
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Metrimate '62 Position 0.197 inch Vertical Rectangular Receptacle Header
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Material Bronze
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 5 A
Gender Female
Housing Color White
Housing Material Polyester
Lead Free Yes
Maximum Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 2
Number of Contacts 3
Number of Positions 3
Number of Rows 1
Orientation Vertical
Packaging Bulk
Pitch 3.96 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1025854-09-48-4038
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 09-48-4038 CAD Model

Description

This Molex Circular Connector Housing has a number of positions of 3, a pitch of 3.96 mm, and a number of rows of 1.

  • Termination: solder
  • Housing Material: made of polyester housing material
  • Contact Material: made of bronze
  • Voltage Rating: 250 V
  • Current Rating: 5 A
  • Connector Type: female
  • Contact Resistance: 6 mΩ
  • Plating: made of tin
  • Housing Color: white
  • Compliance: RoHS compliant
  • Operating Temperature: 0 to 75 °C
  • Mounting: designed to be mounted through hole
