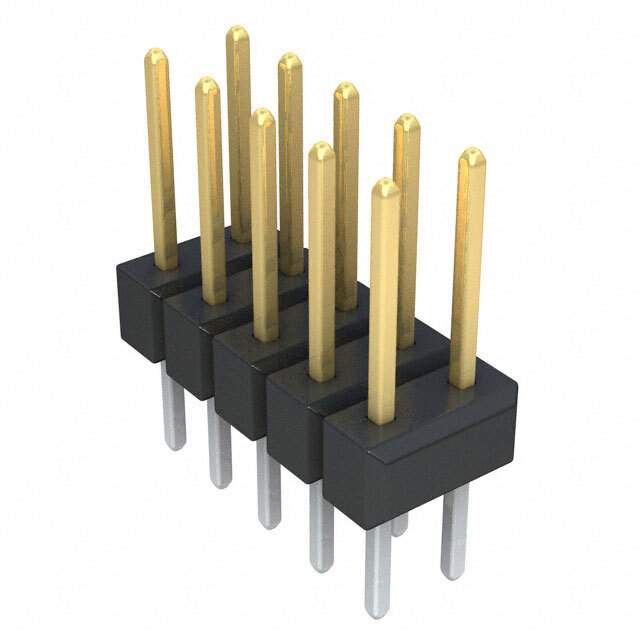

Same model may have multiple batches, images only for reference.

10-89-7102

Name: 10-89-7102
Brand: Molex, LLC
SKU: 1198505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10-89-7102
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	2.54mm Pitch C-Grid Breakaway Header Dual Row Vertical High Temperature 10 Circuits 0.38
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, UL
Color	Black
Connector Type	Male Pin
Contact Gender	Male
Contact Material	Brass, Copper
Contact Mating Length	6.096 mm
Contact Plating	Gold
Contact Resistance	15 mΩ
Country of Origin	US
Current Rating	3 A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	8.77 mm
Housing Color	Black
Housing Material	Thermoplastic
Lead Free	Lead Free
Lead Pitch	2.54 mm
Max Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	10
Number of Contacts	10
Number of Pins	10
Number of Positions	10
Number of Rows	2
Orientation	Vertical
Packaging	Bulk
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Row Spacing	2.54 mm
Schedule B	8536694040, 8536694040
Termination	Solder
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1198505-10-89-7102
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 10-89-7102 CAD Model

Alternative Products

Description

The Molex male pin connector has a 2.54mm pitch and comes in a black color.

Manufacturer: Molex
Pitch: 2.54mm
Color: Black
Orientation: Vertical
Mounting: Through-Hole
Number of Positions: 10
Row Spacing: 2.54mm
Housing Material: Thermoplastic
Contact Material: Brass and Copper
Voltage Rating: 250V
Current Rating: 3A
Contact Plating: Gold
Housing Color: Black
Packaging: Bulk
Contact Resistance: 15mΩ
Lead-Free: Yes
RoHS Compliant: Yes
