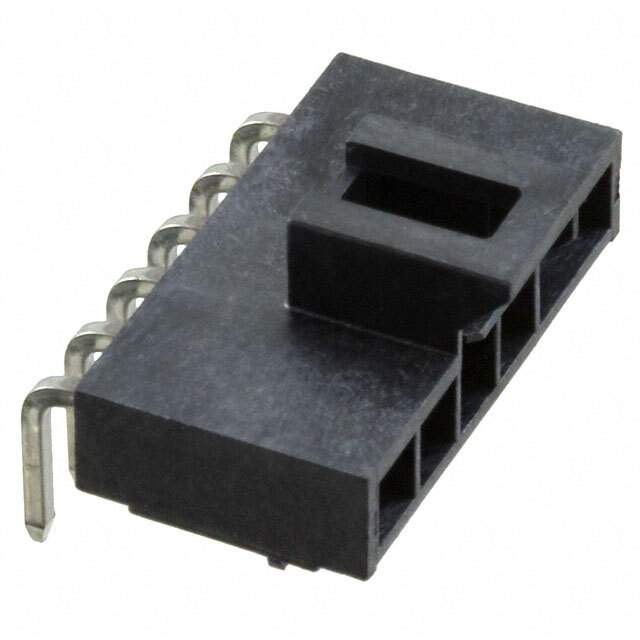

1053131306 Real Image
Same model may have multiple batches, images only for reference.

1053131306

Part No 1053131306
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.5MM / Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Datasheet
1053131306 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Nano-Fit 105313
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.149" (3.78mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 59.0µin (1.50µm)
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Base Product Number 105313
Standard Package 102 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1224146-1053131306
Ultra Librarian 3D Model Ultra Librarian 1053131306 CAD Model

Description

The Molex 1224146-1053131306 is a male pin header connector from Molex, LLC. It belongs to the Nano-Fit 105313 series and is designed for applications that require a compact and reliable connection.

  • Positions: 6
  • Features: Board Guide
  • Termination: Solder
  • Fastening: Latch Holder
  • Contact Material: Brass
  • Applications: Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
  • Voltage Rating: 250V
  • Temperature Range: -40°C to 105°C
