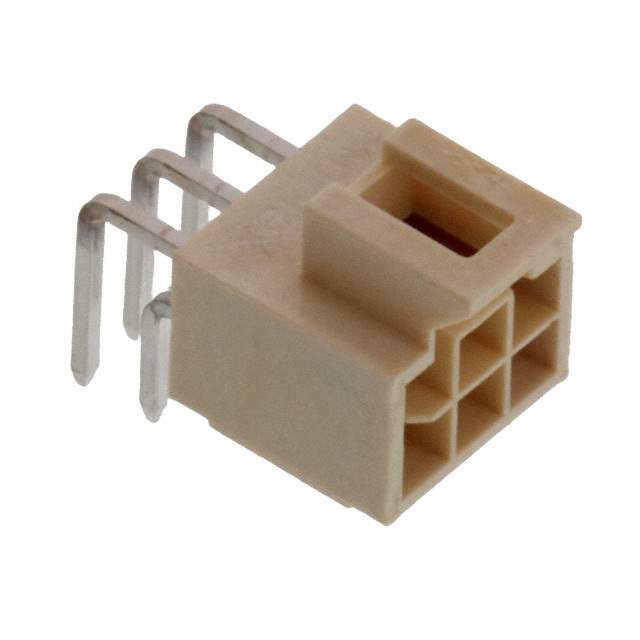

1053142206 Real Image
Same model may have multiple batches, images only for reference.

1053142206

Part No 1053142206
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.5MM
Datasheet
1053142206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Manufacturer Molex, LLC
Series Nano-Fit 105314
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 105314
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 105314-2206, WM15174
Quantity per package 204
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905094-1053142206
Ultra Librarian 3D Model Ultra Librarian 1053142206 CAD Model

Description

The Molex LLC 905094-1053142206 is a right angle connector with 6 positions and through hole mounting.

  • Pitch: 2.50mm
  • Contact Material: tin
  • Voltage Rating: 250 V
  • Current Rating: 1.2 A
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Estimated Production Lead Time: 10 weeks
  • REACH: unaffected
  • RoHS Compliant: yes
  • Suitable for: connectors
