Same model may have multiple batches, images only for reference.

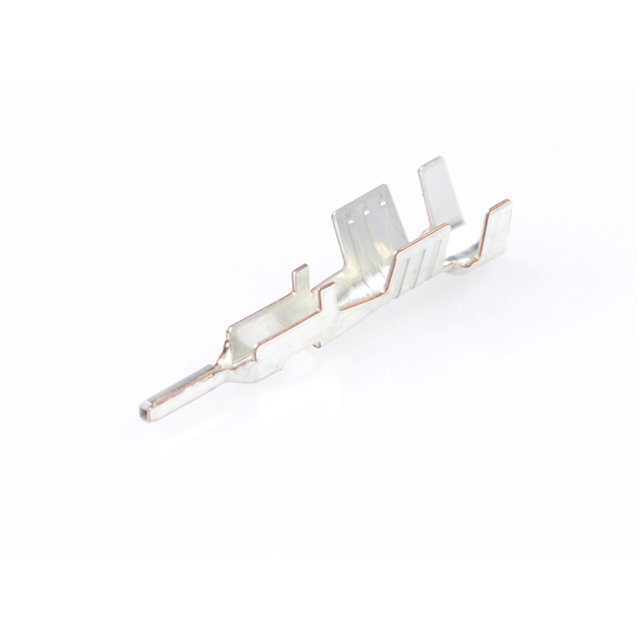

1054170334 Molex
Same model may have multiple batches, images only for reference.

1054170334

Part No 1054170334
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description MEGA-FIT MALE TML PRE-TIN 14/16A
Datasheet
1054170334 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Connectors, Interconnects > Rectangular Connectors > Rectangular Connector Contacts
Part Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Contact Finish Tin
Contact Finish Thickness 40.0µin (1.02µm)
Ultra Librarian 3D Model Ultra Librarian 1054170334 CAD Model

Description

Mega-Fit Crimp Terminal, Male, Tin (Sn) Plating, Double 20+20, 18+18 or Single 16-14 AWG, Reel
