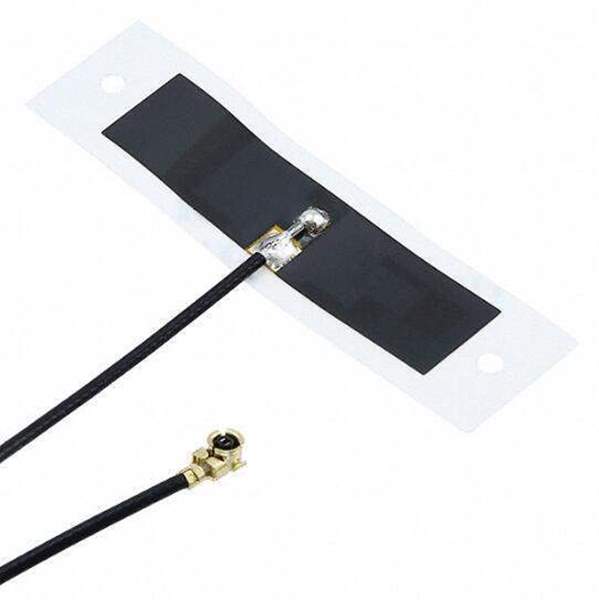

1461530050 Molex
Same model may have multiple batches, images only for reference.

1461530050

Part No 1461530050
Manufacturer Molex, LLC
Catalog RFID Antennas
Description RF ANT 2.4/5GHZ FLAT PATCH 50MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category RF and Wireless RF Antennas
Series 146153
Package Bulk
Product Status Active
RF Family/Standard 802.15.4, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5GHz
Frequency Range 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Antenna Type Flat Patch
Number of Bands 2
Win Source Part Number WS1205915-1461530050
Ultra Librarian 3D Model Ultra Librarian 1461530050 CAD Model

Description

2.4GHz, 5GHz WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz 3.2dBi, 4.75dBi U.FL (UMCC), IPEX MHF1 Adhesive
