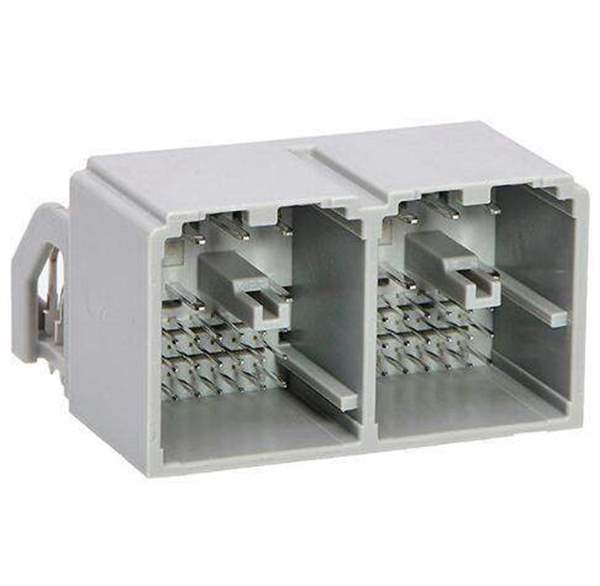

1600130641 Molex
Same model may have multiple batches, images only for reference.

1600130641

Part No 1600130641
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description AK50 HYB HDR ASSY 56 CKT KEY4&1/
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series stAK50h 160013
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Blade
Number of Positions 56 (28 + 28)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Win Source Part Number WS1206125-1600130641
Ultra Librarian 3D Model Ultra Librarian 1600130641 CAD Model

Description

Connector Header Through Hole, Right Angle 56 (28 + 28) position
