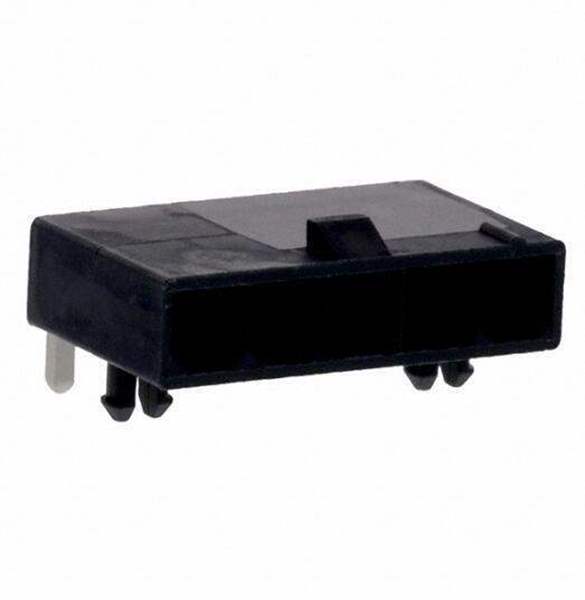

1726480105Molex
Same model may have multiple batches, images only for reference.

1726480105

Part No 1726480105
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 4.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Mini-Fit Jr 172648
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 5
Number of Rows 1
Style Board to Cable/Wire
Win Source Part Number WS1206368-1726480105
Ultra Librarian 3D Model Ultra Librarian 1726480105 CAD Model

Description

Connector Header Through Hole, Right Angle 5 position 0.165" (4.20mm)
