Same model may have multiple batches, images only for reference.

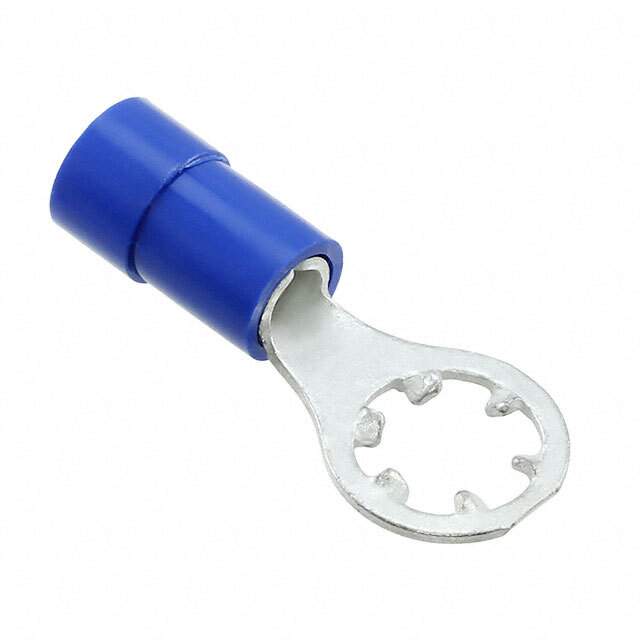

0190750024 Real Image
Same model may have multiple batches, images only for reference.

0190750024

Part No 0190750024
Manufacturer Molex, LLC
Catalog Terminals
Description CONN RING CIRC 14-16AWG #10 / Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer Molex
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.050" (1.27mm)
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 0.900" (22.86mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Inner Teeth
Color Blue
Contact Material Steel
Contact Finish Electro-Tin
Insulation Diameter 0.175" (4.45mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 019075
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 019075-0024,19075-0024,WM14234CT,0190750024-ND,WM14234TR,190750024,SRB-S-229-10XT
Standard Package 1,500
Win Source Part Number 1333770-0190750024
Ultra Librarian 3D Model Ultra Librarian 0190750024 CAD Model

Description

The Molex 0190750024 is a blue ring connector with inner teeth and crimp termination.

  • Contact Finish: Electro-Tin
  • Contact Material: Steel
  • Wire Gauge: 14-16 AWG
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Insulation Diameter: 0.175" (4.45mm)
  • Stud/Tab Size: 10 Stud
  • Thickness: 0.050" (1.27mm)
  • Width: 0.375" (9.53mm)
  • Overall Length: 0.900" (22.86mm)
  • Insulation: Insulated
  • Packaging: Reel
  • Quantity: 1,500
  • ROHS3 Compliant: Yes
  • HTSUS: 8536.90.4000
