Same model may have multiple batches, images only for reference.

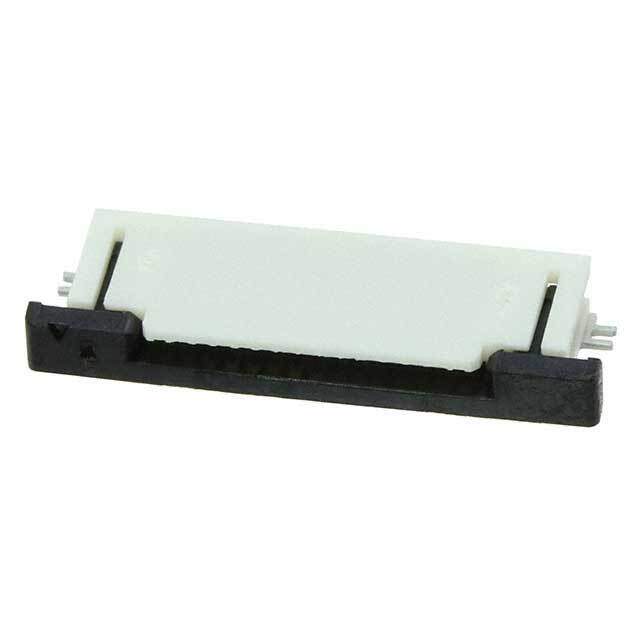

0527451597 Real Image
Same model may have multiple batches, images only for reference.

0527451597

Part No 0527451597
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC TOP 15POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 15 Weeks
Features 15 Position - Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Molex, LLC
Series Easy-On 52745
Package Reel - TR
Operating Temperature Range -20°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 052745
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 527451597, 52745-1597-TR250, WM8938DKR, WM8938TR, 52745-1597, WM8938CT, 052745-1597
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907265-0527451597
Ultra Librarian 3D Model Ultra Librarian 0527451597 CAD Model

Description

The 907265-0527451597 is a 15-position connector manufactured by Molex, LLC.

  • Manufacturer: Molex, LLC
  • Product Number: 907265-0527451597
  • Series: Easy-On 52745 series
  • Position: 15-position
  • Mounting Style: surface-mount top of 0.020" (0.50mm)
  • Orientation: right-angle
  • Popularity: popular
  • Supply and Demand: high demand and a balanced supply
  • Estimated Production Lead Time: 15 weeks
  • Quantity per Package: 1000
  • Applications: consumer electronics, industrial equipment, and automotive electronics
  • Operating Temperature: -20°C to 85°C
  • ECCN: EAR99
  • REACH: unaffected
