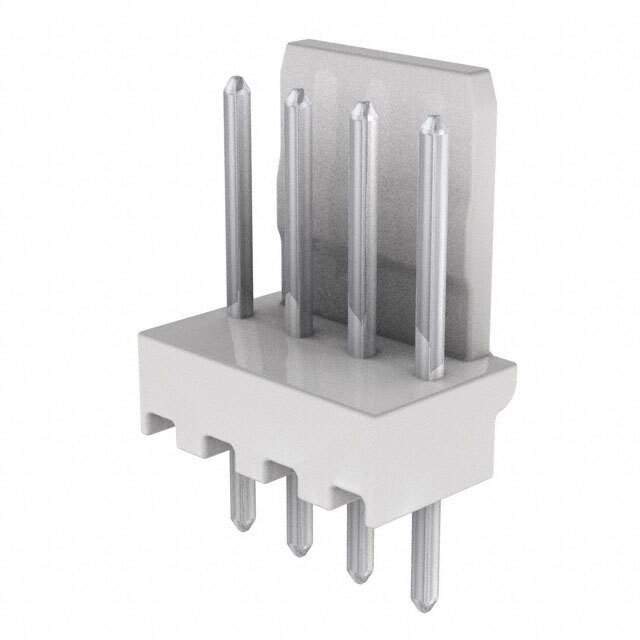

Same model may have multiple batches, images only for reference.

22-04-1041

Name: 22-04-1041
Brand: Molex, LLC
SKU: 1033490
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	22-04-1041
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Modular Connectors / Ethernet Connectors CONN MOD JACK 8P8C R/A SHIELDED
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	TW
Current Rating	3 A
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	11.7 mm
Hole Diameter	1.19 mm
Housing Color	Natural
Housing Material	Nylon
Insulation Resistance	1 GΩ
Lead Free	Yes
Lead Pitch	2.5 mm
Length	9.5 mm
Maximum Operating Temperature	105 °C
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Pins	4
Number of Poles	4
Number of Positions	4
Number of Rows	1
Orientation	Vertical
Packaging	Bulk
Pitch	2.5 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shape	Straight
Termination	Solder
Voltage Rating	250 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Width	4.9 mm
Working Voltage	250 V
Win Source Part Number	1033490-22-04-1041
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 22-04-1041 CAD Model

Alternative Products

Description

The 1033490-22-04-1041 circular connector housing from Molex, LLC has 4 pins and 4 poles.

Pins: 4
Poles: 4
Pitch: 2.5 mm
Color: Natural
Rows: One
Termination: Solder
Contact Material: Brass
Voltage Rating: 250 V
Current Rating: 3 A
Housing Material: Nylon
Contact Plating: Tin
RoHS Compliant: Yes
Flammability Rating: UL94 V-0
Height: 11.7 mm
Width: 4.9 mm
Hole Diameter: 1.19 mm
Insulation Resistance: 1 GΩ
Maximum Operating Temperature: 105 °C
Minimum Operating Temperature: -40 °C
Lead-Free: Yes
Glow Wire Compliance: Non-Compliant
Supply and Demand Status: Shortage
