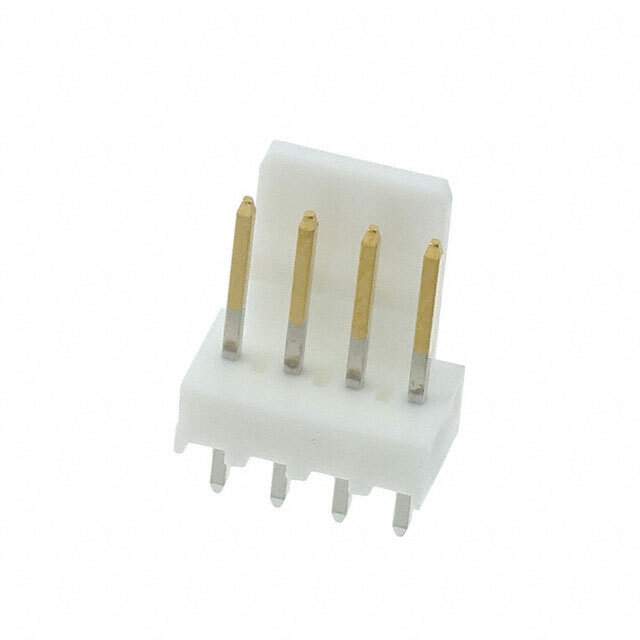

Part No 0022292041
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002229
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM2746,22-29-2041-P,22-29-2041,22292041
Standard Package 1,500
Win Source Part Number 1332561-0022292041
Ultra Librarian 3D Model Ultra Librarian 0022292041 CAD Model

Description

The Molex 1332561-0022292041 is a male pin header connector designed for use in board-to-cable/wire applications in the automotive, medical, telecommunications, and general-purpose sectors.

  • Packaging: Bulk
  • Number of Positions: Four
  • Positions Loaded: All Positions
  • Contact Material: Brass
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Mounting Type: Through-Hole
  • Overall Contact Length: 0.560" (14.22mm)
