Same model may have multiple batches, images only for reference.

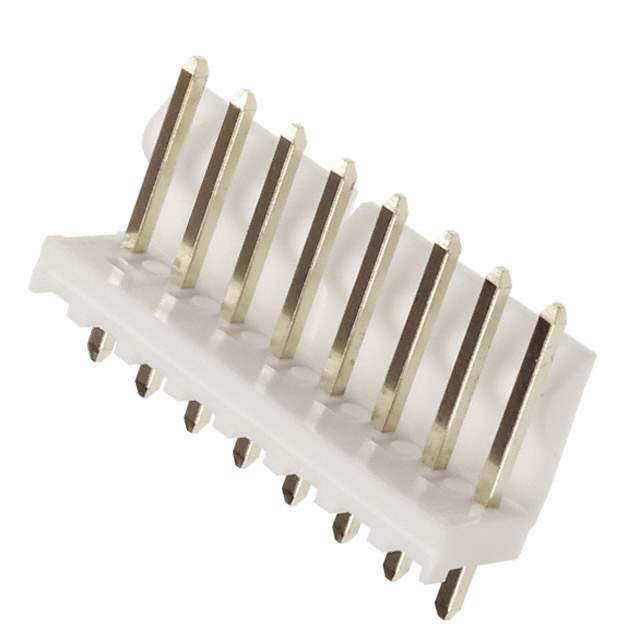

0026604080 Real Image
Same model may have multiple batches, images only for reference.

0026604080

Part No 0026604080
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3.96MM / Connector Header Through Hole 8 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.450" (11.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.720" (18.29mm)
Insulation Height 0.446" (11.33mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 002660
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 026604080,26-60-4080-P,WM4626-NDR,41791-0008,0026-60-4080,26-60-4080,WM4626,26604080-P,0026-60-4080-P,026604080-P,26604080
Standard Package 2,000
Win Source Part Number 1332568-0026604080
Ultra Librarian 3D Model Ultra Librarian 0026604080 CAD Model

Description

The 1332568-0026604080 is a male pin header connector from Molex.

  • Contact Gender: Male Pin
  • Number of Positions: 8
  • Connector Style: Board to Board or Cable
  • Pitch Mating: 0.156" (3.96mm)
  • Mounting Technology: Through Hole
  • Shrouding: Shrouded-1 Wall
  • Insulation Color: Natural
  • ROHS3 Compliant: Yes
