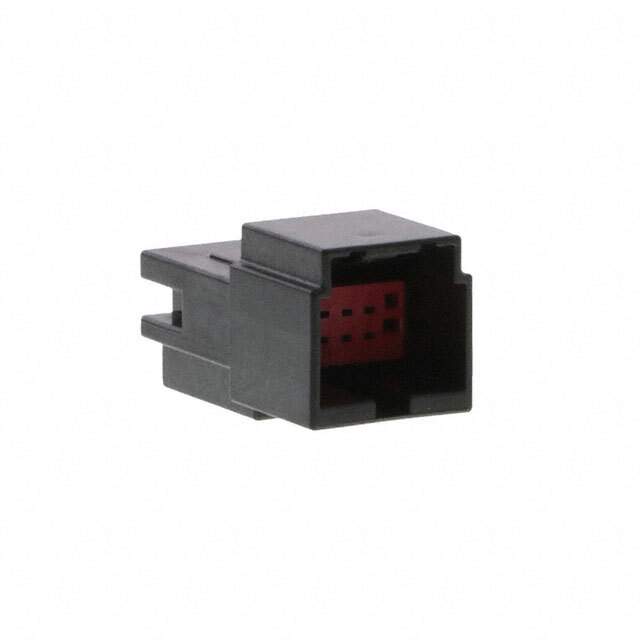

309681081 Real Image
Same model may have multiple batches, images only for reference.

309681081

Part No 309681081
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Header Connector, cable Mount, recept, 8 Contacts, pin, 0.1 Pitch, crimp Terminal, locking Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Country of Origin US
Current Rating 7 A
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polystyrene
Length 34.85 mm
Material Polystyrene
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Straight
Pitch 2.54 mm
REACH SVHC No SVHC
RoHS Compliant
Voltage Rating (DC) 500 V
Win Source Part Number 1199624-309681081
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 309681081 CAD Model

Description

The Molex 8-position male connector is a versatile and reliable component for electronic projects from Molex.

  • Pitch: 2.54 mm
  • Current Rating: 7 A
  • Housing Material: Polystyrene
  • Orientation: Straight
  • Length: 34.85 mm
  • Halogen-Free: Yes
  • RoHS Compliant: Yes
  • Voltage Rating: 500 V DC
  • Operating Temperature: -40 °C to 105 °C
