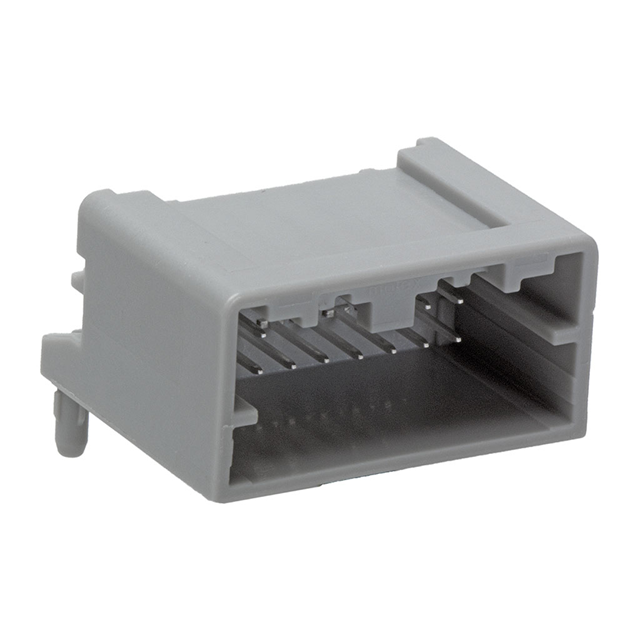

34826-0241 Real Image
Same model may have multiple batches, images only for reference.

34826-0241

Part No 34826-0241
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Mini50 Unsealed Right-Angle Header, Dual Row, 24 Circuit, Polarization Option B, 2.80mm Pin Length, Gray, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Tin
Country of Origin CN
Number of Circuits 24
Number of Rows 2
Orientation Right Angle
Plating Tin
RoHS Compliant
Win Source Part Number 1038228-34826-0241
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 34826-0241 CAD Model

Description

The Molex, LLC electronic component with the Win Source Part Number 1038228-34826-0241 is a circular connector housing with 2 rows and 24 circuits.

  • Rows: 2
  • Circuits: 24
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Plating: Tin
  • Alternative Parts (Cross-Reference): 34826-02410348260241; 348260241
  • Country of Origin: CN
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
