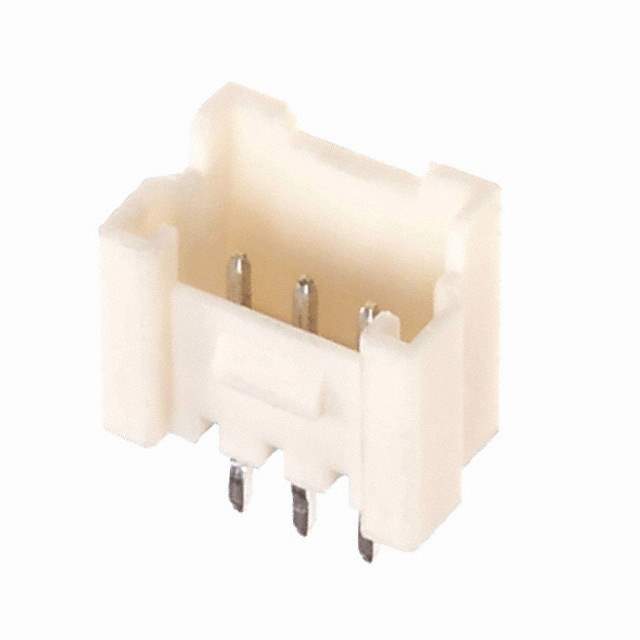

353620350 Real Image
Same model may have multiple batches, images only for reference.

353620350

Part No 353620350
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS 2MM VERT TIN
Datasheet
353620350 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.145" (3.70mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Voltage Rating 125V
Mated Stacking Heights 8.5mm
Contact Finish Thickness - Post 39μin (1.00μm)
Applications Automotive, General Purpose
Win Source Part Number 1005195-353620350
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 353620350 CAD Model

Description

The header connector is a high-quality electronic component from Molex LLC.

  • Applications: Automotive and General Purpose
  • Positions: 3
  • Connection Type: Board to Cable/Wire
  • Connector Type: Male Pin
  • Locking: Locking Ramp
  • Voltage Rating: 125V
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA) and Nylon
  • Contact Finish: Tin @ 39μin (1.00μm)
  • Shrouded: 4 Walls
  • Contact Length: 0.130" (3.30mm)
  • Operating Temperature: -40°C to 105°C
