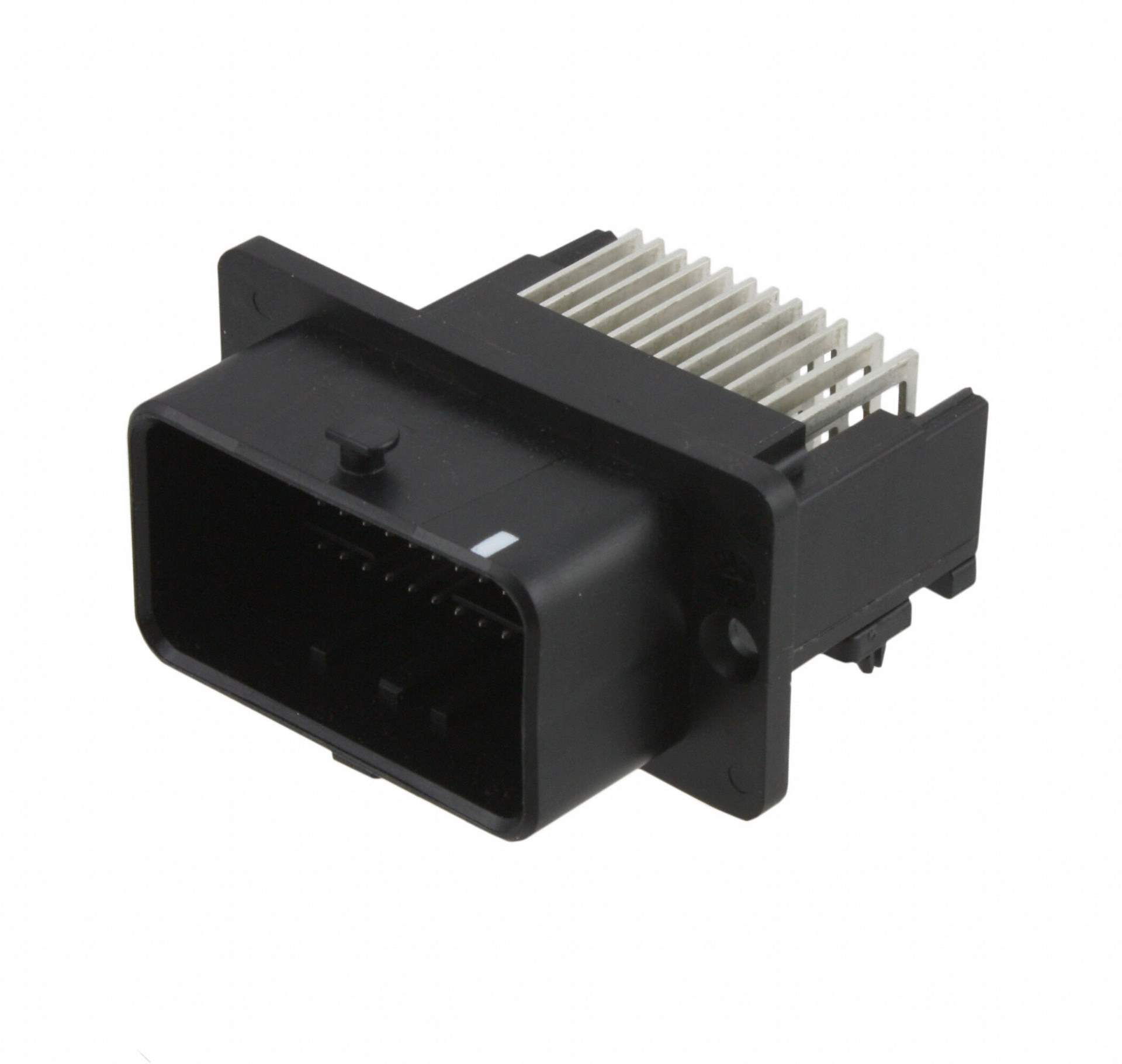

0366380003

Name: 0366380003
Brand: Molex, LLC
SKU: 1332953
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0366380003
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER BRD EDGE 48POS / Connector Header Board Edge, Through Hole, Right Angle 48 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Box
Connector Type	Header
Contact Type	Male Pin
Number of Positions	48
Number of Rows	4
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Board Edge, Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Insulation Height	1.205" (30.61mm)
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	157.5µin (4.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Flange
Insulation Color	Brown
Applications	Automotive
Base Product Number	036638
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM13375,36638-0003,036638-0003,0366380003-ND,366380003
Standard Package	25
Win Source Part Number	1332953-0366380003
Ultra Librarian 3D Model	Ultra Librarian 0366380003 CAD Model

Alternative Products

Description

The Molex 1332953-0366380003 is a 48-position male pin header connector that is ideal for use in automotive applications.

Board Lock: Yes
Mounting Flange: Yes
Contact Material: Brass
Termination: Solder
MSL Level: Unlimited
REACH Affected: No
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Insulation Color: Brown
Shrouding: 4 Walls
Mounting Style: Right-Angle Through-Hole
Contact Finish Mating: Tin with a thickness of 157.5µin (4.00µm)
Contact Finish Post: Tin
Insulation Height: 1.205" (30.61mm)
Temperature Range: -55°C to 125°C
