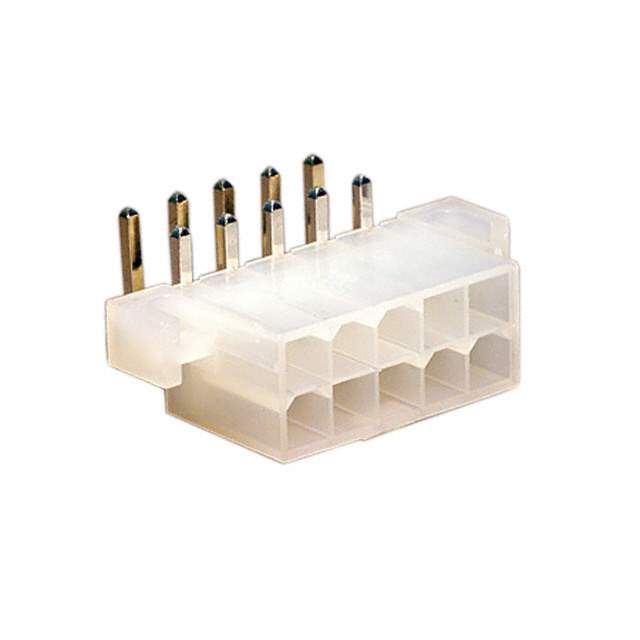

39-29-1108 Real Image
Same model may have multiple batches, images only for reference.

39-29-1108

Part No 39-29-1108
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Timer Connector HDR 10 POS 5mm Solder RA Thru-Hole 10 Terminal 1 Port Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Color Natural
Connector Type Power, Rectangular
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current 10 A
Current Rating 7 A
ELV Compliant
Flammability Rating UL94 V-2
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 4.2 mm
Material Brass
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Pins 10
Number of Poles 10
Number of Positions 10
Number of Rows 2
Orientation Right Angle
Packaging Bulk
Pitch 4.2 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 5.5 mm
Termination Solder
Voltage 600 V
Voltage Rating 600 V
Voltage Rating (AC) 600 V
Voltage Rating (DC) 600 V
Working Voltage 250 V
Win Source Part Number 1038357-39-29-1108
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-29-1108 CAD Model

Description

The 39-29-1108 is a 10-position power rectangular connector manufactured by Molex, LLC.

  • Pitch: 4.2 mm
  • Voltage Rating: 600 V
  • Current Rating: 7 A
  • Gender: Male
  • Housing Material: Nylon
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Approvals: CSA, TUV, and UL
  • Insulation Resistance: 1 GΩ
