Same model may have multiple batches, images only for reference.

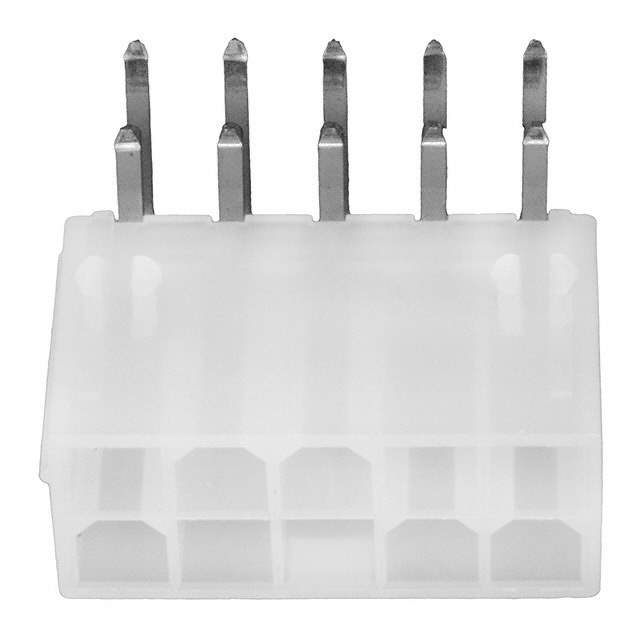

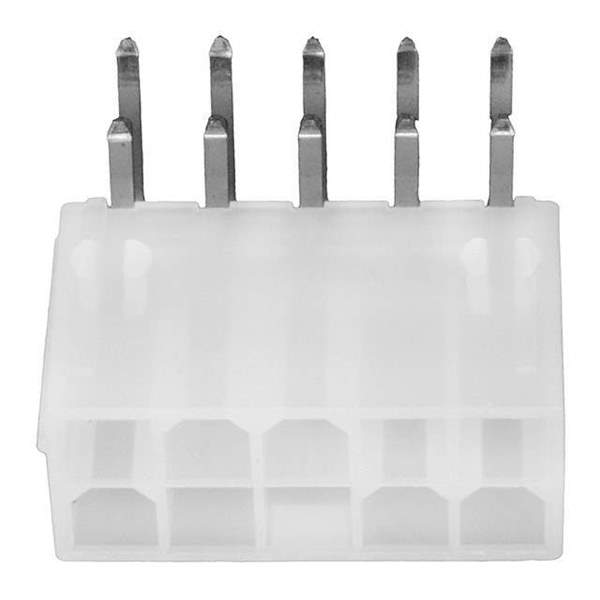

39-30-1101 Real Image
Same model may have multiple batches, images only for reference.

39-30-1101

Part No 39-30-1101
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Connector Wire to Board Header 10 Position 4.2mm Solder Right Angle Thru-Hole Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 7 A
Depth 19.4 mm
ELV Compliant
Flammability Rating UL94 V-2
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 11.4 mm
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 4.2 mm
Length 22.2 mm
Material Brass
Max Current Rating 8 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Ports 1
Number of Positions 10
Number of Rows 2
Number of Terminals 10
Orientation Right Angle
Pitch 4.2 mm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 5.5 mm
Termination Through Hole
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1008019-39-30-1101
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-30-1101 CAD Model

Description

The Molex 1008019-39-30-1101 is a male connector with 10 contacts and a pitch of 4.2 mm.

  • Contacts: 10
  • Pitch: 4.2 mm
  • Voltage Rating: 600 V
  • Current Rating: 7 A
  • Contact Material: Brass
  • Color: Natural
  • Orientation: Right-angle
  • Mounting: Through a hole
  • Housing Material: Nylon
  • Height: 11.4 mm
  • Low Halogen: Yes
  • RoHS-compliant: Yes
  • Operating Temperature Range: -40 °C to 105 °C
  • Supply and Demand Status: Short
  • Popularity: Low
