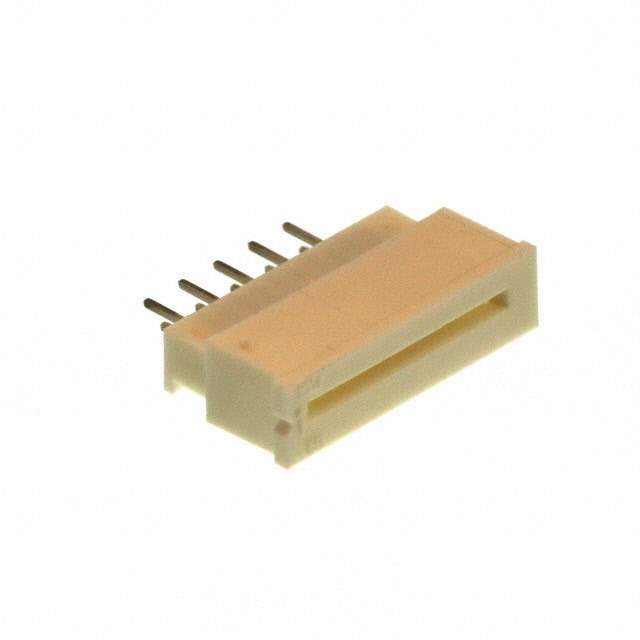

Same model may have multiple batches, images only for reference.

39-53-2105

Name: 39-53-2105
Brand: Molex, LLC
SKU: 1039299
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	39-53-2105
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	Conn FFC Connector F 12 POS 1.27mm Solder ST Thru-Hole Automotive T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Contact Material	Bronze
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	JP
Current Rating	1 A
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	9.8 mm
Housing Material	PBT
Insulation Resistance	500 MΩ
Lead Pitch	1.25 mm
Length	18.25 mm
Maximum Operating Temperature	80 °C
Min Operating Temperature	-20 °C
Mount	Through Hole
Number of Circuits	10
Number of Contacts	10
Number of Pins	10
Number of Poles	10
Number of Positions	10
Number of Rows	1
Orientation	Vertical, Right Angle
Pitch	1.25 mm
REACH SVHC	Unknown
RoHS	Compliant
Stackable	No
Termination	Through Hole
Voltage Rating	200 V
Voltage Rating (DC)	200 V
Width	5 mm
Win Source Part Number	1039299-39-53-2105
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 39-53-2105 CAD Model

Alternative Products

Description

This is a 10-position, 1.25 mm pitch, black-colored receptacle connector manufactured by Molex, LLC.

Win Source Part Number: 1039299-39-53-2105
Contact Material: Bronze
Housing Material: PBT
Contact Plating: Tin
Voltage Rating: 200 V
Current Rating: 1 A
RoHS Compliant: Yes
Maximum Operating Temperature: 80 °C
Supply and Demand Status: Shortage
Ideal for Use In: FFC, FPC (Flat Flexible) Connectors
