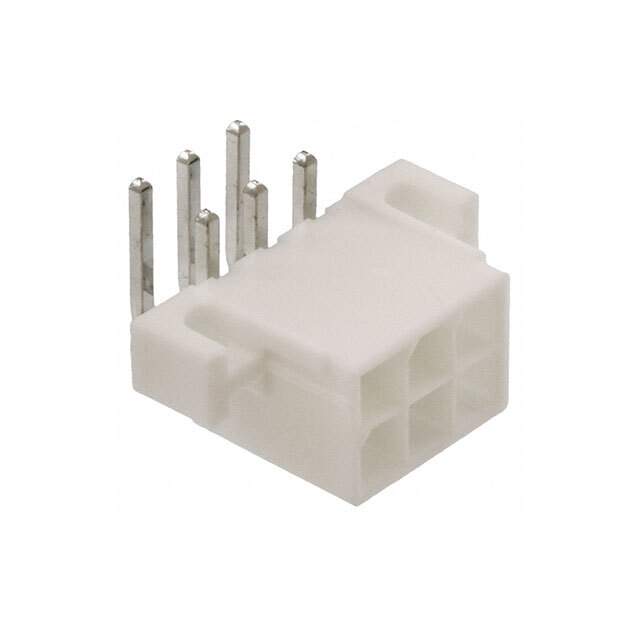

39291067 Real Image
Same model may have multiple batches, images only for reference.

39291067

Part No 39291067
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 6POS DL R/A TIN
Datasheet
39291067 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Mini-Fit Jr 5569
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Telecommunications
Win Source Part Number 763435-39291067
Popularity Medium
Supply and Demand Status Limited
Family Name 5569
Introduction Date July 07, 2010
ECCN EAR99
Country of Origin China, Japan, Mexico, Puerto Rico, Republic of Korea, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 39291067 CAD Model

Description

The Molex, LLC 763435-39291067 is a 6-position Mini-Fit Jr 5569 series header connector with mounting flange and male pin contact type.

  • Contact Type: Male Pin
  • Mounting Style: Through-Hole, Right Angle
  • Applications: General purpose, industrial, and telecommunications
  • Shrouding: 4 walls
  • Row Spacing: 0.165" (4.20mm)
  • Contact Finish: Tin
  • Contact Finish Thickness: 100μin (2.54μm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Supply and Demand Status: Limited
