Part No 39300020
Manufacturer Molex, LLC
Catalog Rectangular Connectors

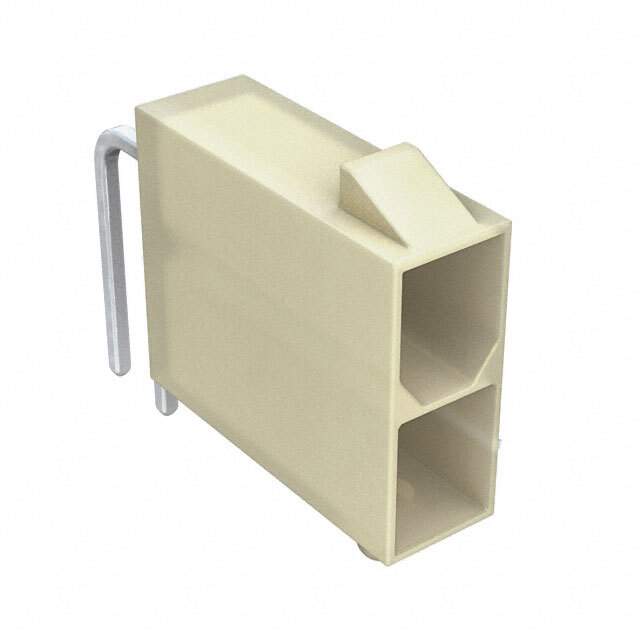

Description CONN HEADER 2POS 4.2MM R/A TIN / Conn Wire to Board HDR 2Power POS Solder RA Side Entry Thru-Hole Mini-Fit Sr™ Bag
Datasheet
39300020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Mini-Fit Jr 5569
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Telecommunications
Win Source Part Number 775575-39300020
Popularity Medium
Supply and Demand Status Limited
Family Name 5569
Introduction Date July 07, 2010
ECCN EAR99
Country of Origin China, Hong Kong, Mexico, Puerto Rico, United States of America
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 39300020 CAD Model

Description

The Molex 775575-39300020 connector.

  • Positions: 2
  • Series: Mini-Fit Jr 5569
  • Mounting: Through-hole, right-angle
  • Fastening Type: Locking ramp
  • Insulation Material: Polyamide (PA66), nylon 6/6
  • Insulation Color: Natural
  • Shrouding: 4 walls
  • Popularity: Medium
  • Supply and Demand: Limited
  • ECCN: EAR99
  • Halogen Free: Yes
