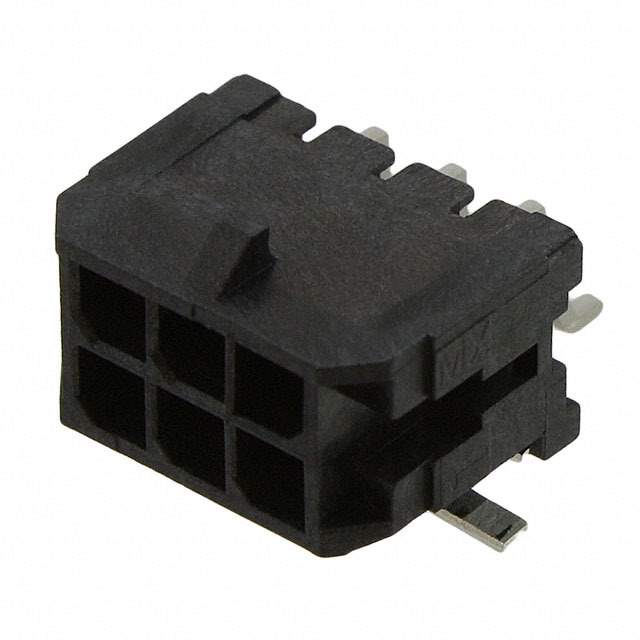

The Molex 43045-0610 is a Micro-Fit 3.0™ connector header, designed for wire-to-board connections where space is at a premium. This six-circuit, dual-row header is a crucial component in applications requiring reliable power and signal transmission within a compact footprint. Its positive locking mechanism and durable construction make it suitable for use in harsh environments and high-vibration applications.

Applications:

• Consumer electronics (e.g., televisions, audio equipment)
• Industrial controls
• Robotics
• Medical equipment
• Networking equipment
• Telecommunications
• Automotive applications

Features:

• Micro-Fit 3.0™ Design: Offers a compact size with a 3.0mm pitch for high-density applications.
• Six Circuits: Provides six individual connection points for versatile signal and power routing.
• Dual-Row Configuration: Maximizes circuit density within a small footprint.
• Through-Hole Termination: Ensures a strong and reliable mechanical and electrical connection to the PCB.
• Positive Locking: Securely mates with compatible Molex receptacles, preventing accidental disconnections.
• High-Temperature Thermoplastic: Allows for use in reflow soldering processes.
• Polarization: Prevents incorrect mating with the receptacle.

Benefits:

• Space Saving: The compact Micro-Fit 3.0™ design reduces the overall size and weight of the application.
• Secure Connection: The positive locking feature ensures a stable and reliable connection, even in high-vibration environments.
• Easy Installation: Through-hole termination simplifies the soldering process and reduces assembly time.
• Versatile Application: Suitable for a wide range of applications due to its compact size, high current carrying capabilities, and secure locking.
• Increased Reliability: High-quality materials and construction ensure long-term reliability.
• Reduced Mismatch Risk: Polarization feature prevents damage due to incorrect mating.

Additional Details:

The Molex 43045-0610 is designed to mate with Molex Micro-Fit 3.0™ receptacles. It has a current rating of up to 5.0A per circuit, making it suitable for both power and signal applications. The housing material is a high-temperature thermoplastic, allowing it to withstand reflow soldering temperatures. This connector is RoHS compliant.
