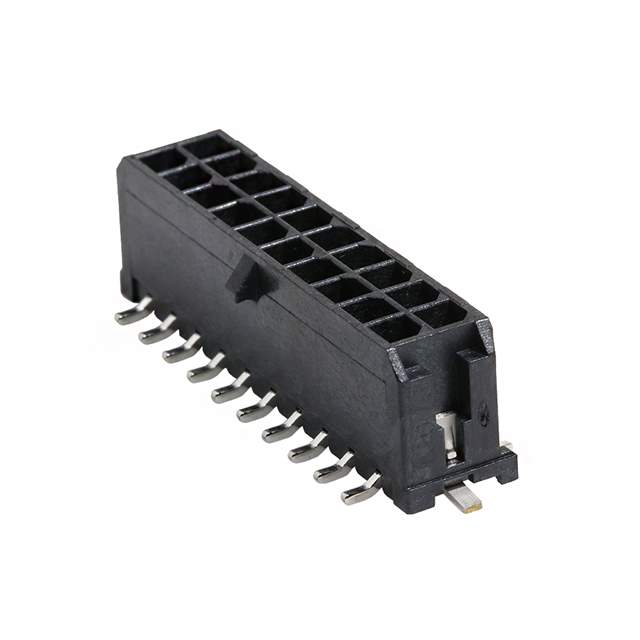

The Molex, LLC 43045-2020 is a Micro-Fit 3.0 header designed for wire-to-board connections, offering a compact and reliable interconnect solution. Part of the Micro-Fit 3.0 connector system, it's known for its high current carrying capacity and dependable performance in a variety of applications.

Applications:

• Power supplies
• Industrial automation
• Robotics
• Consumer electronics
• Automotive systems

Features:

• Micro-Fit 3.0 Design: Offers a compact solution for high-density connections.
• 20 Circuits: Accommodates a larger number of connections in a single header.
• Dual Row: Increases connection density while optimizing board space.
• Through-Hole Mounting: Provides a robust and secure mechanical connection to the PCB.
• Polarization: Ensures correct mating and prevents damage from misaligned connections.

Benefits:

• Increased Reliability: Offers a stable and dependable connection for critical applications.
• Streamlined Assembly: Simplifies the manufacturing process.
• Optimized PCB Space: Allows for denser component placement.
• Mismating Prevention: Reduces the risk of damage due to incorrect connections.
• Cost-Effective: Provides a reliable connection solution at a competitive price point.

Additional Details:

The 43045-2020 header is constructed from high-temperature thermoplastic, making it suitable for reflow soldering processes. It has a flammability rating of UL 94V-0 for safety. The header is designed to mate with Micro-Fit 3.0 receptacles. The design includes polarization to ensure correct alignment during mating. The Micro-Fit 3.0 system delivers a high current carrying capacity within a compact footprint. With a broad range of options available, including different circuit sizes, plating materials, and mounting configurations, it provides flexibility to meet various application needs. The robust design ensures consistent and reliable performance in demanding environments.
