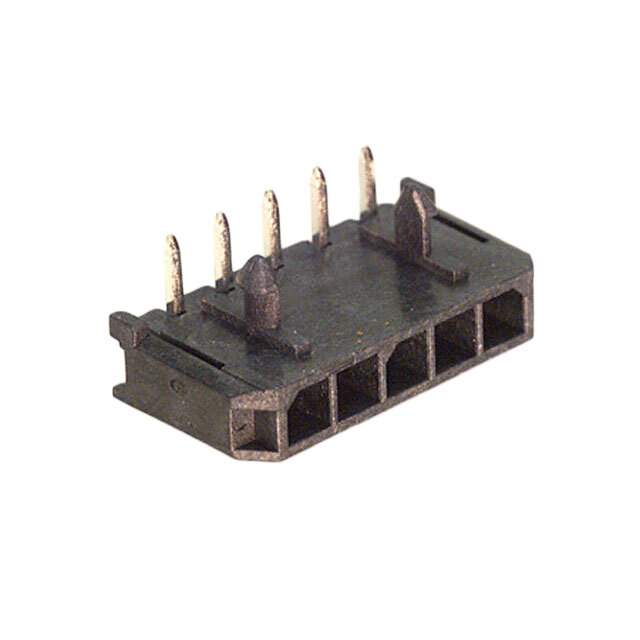

43650-0500

Part No 43650-0500
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 5POS 3MM RT ANG TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 197732-43650-0500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 43650-0500 CAD Model

Description

43650-0500 Connector

The 43650-0500 connector stands out for its adaptability and efficiency in various applications. It provides a reliable connection that avoids interference, making it a staple in both commercial and industrial settings.

Features and Benefits:

  • Adaptable to a wide range of electronic configurations.
  • Provides excellent shielding against electromagnetic interference.
  • Compact design for space-saving installations.

Applications/Projects:

  • Home automation devices.
  • Smart grid technology applications.
  • Telecommunications infrastructure.

The 43650-0500 is your go-to connector for ensuring consistent and effective connectivity across diverse platforms.
