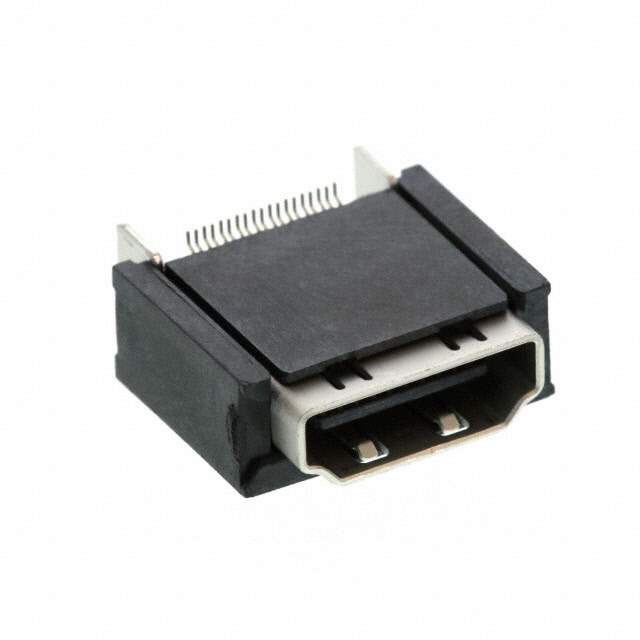

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Molex
Series 47632
Package Tray
Product Status Obsolete
Connector Type HDMI
Number of Contacts 19
Gender Receptacle
Mounting Type Surface Mount, Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Guide, Pick and Place
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.5A per Contact
Voltage - Rated 40VDC
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 047632
Other Names 0476323000,WM12721,47632-3000,476323000,047632-3000
Standard Package 720
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285031-476323000
Ultra Librarian 3D Model Ultra Librarian 476323000 CAD Model

Description

The Molex 1285031-476323000 is an obsolete HDMI connector that has a receptacle gender with 19 contacts.

  • Contacts: 19
  • Voltage Rating: 40VDC
  • Current Rating: 0.5A per contact
  • Mounting: Vertical
  • Mating Cycle: Unlimited
  • Material Flammability Rating: UL94 V-0
  • Shielded: Yes
  • Temperature Range: -20°C to 85°C
  • Material: Copper Alloy
  • Package: Tray
  • Standard Package: 720
