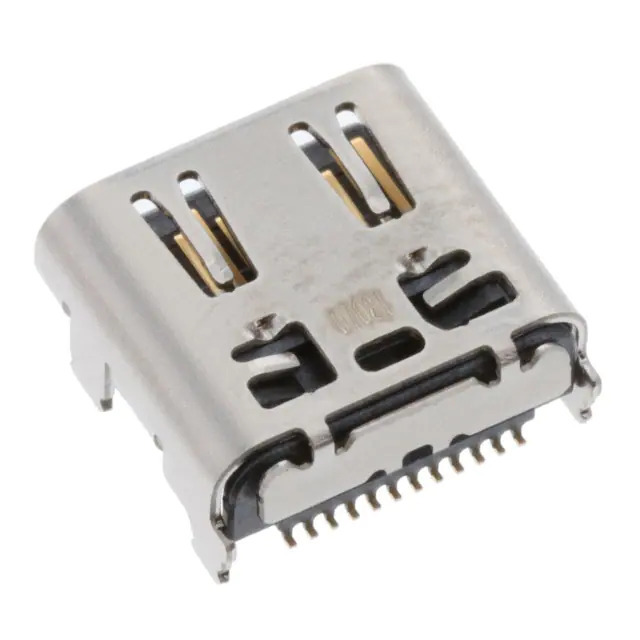

DX07S024JA1R1300

Name: DX07S024JA1R1300
Brand: JAE Electronics
SKU: 1352473
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DX07S024JA1R1300
Manufacturer	JAE Electronics
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCP USB3.1 C SMD R/A 1300PC / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	JAE Electronics
Series	DX07
Package	Tape & Reel
Product Status	Active
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Receptacle
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Features	Board Guide
Ingress Protection	-
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	5A
Voltage - Rated	20VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	-
Insulation Color	Black
Base Product Number	DX07S024
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1352473-DX07S024JA1R1300
Ultra Librarian 3D Model	Ultra Librarian DX07S024JA1R1300 CAD Model

Alternative Products

Description

The DX07S024JA1R1300 is a USB-C connector assembly manufactured by JAE Electronics.

Series: DX07
Packaging: Tape and Reel
Mounting Type: Surface Mount, Through-Hole
Mounting Feature: Horizontal
Voltage Rating: 20VAC
Current Rating: 5A
Contact Finish: Gold
Shielding: Shielded
HTSUS Code: 8536.69.4040
ECCN Code: EAR99
USB Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +)
Number of Contacts: 24
Number of Ports: 1
Material: Steel and Stainless Steel
Mating Cycle Rating: 10,000 Cycles
