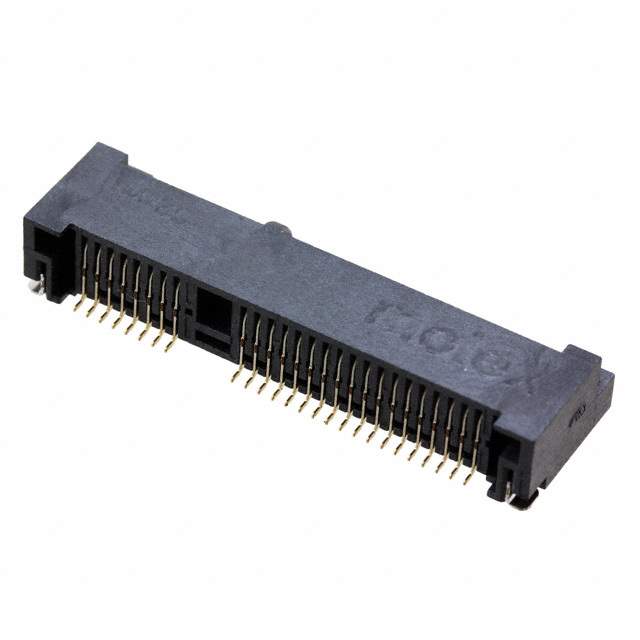

48338-0099 Real Image
Same model may have multiple batches, images only for reference.

48338-0099

Part No 48338-0099
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Conn Mini PCI Express Card Edge SKT 52 POS 0.8mm Solder RA SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold, Tin
Current Rating 500 mA
Housing Color Black
Housing Material Thermoplastic
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 52
Number of Contacts 52
Number of Positions 52
Number of Rows 2
Orientation Right Angle
Pitch 800 µm
Radiation Hardening No
RoHS Compliant
Termination Solder
Win Source Part Number 993427-48338-0099
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 48338-0099 CAD Model

Description

This Molex connector is a 52-position, right angle connector with a pitch of 800 μm.

  • Positions: 52
  • Orientation: Right Angle
  • Pitch: 800 μm
  • Housing Material: Black thermoplastic
  • Termination: Solder
  • Contact Plating: Gold and tin
  • Current Rating: 500 mA
  • Category: Card edge connectors - edgeboard connectors
  • RoHS: Compliant
  • Alternative parts: 1775838-2, 2041119-1, 1775862-2, 67910-1002, 48338-0057, 10123824-A20LF0483380099, and 483380099
  • Supply and Demand: Shortage
