Same model may have multiple batches, images only for reference.

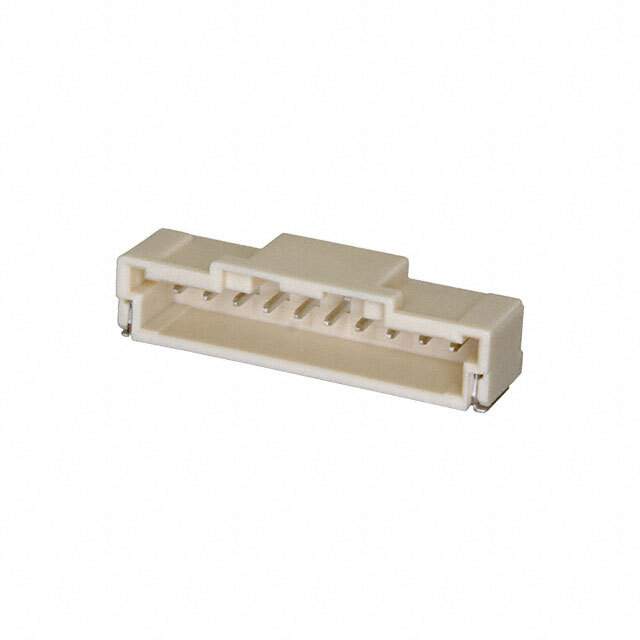

502352-1000 Real Image
Same model may have multiple batches, images only for reference.

502352-1000

Part No 502352-1000
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description DuraClik Wire-to-Board Header, Single Row, Right-Angle, 10 Circuits, Tin (Sn) Plating, Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 105 °C
Color Natural
Connector Type Male Pin
Contact Material Tin
Contact Plating Tin
Country of Origin CN
Current Rating 3 A
Fastening Type Latch
Height 6.6 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 10
Number of Pins 10
Number of Positions 10
Number of Rows 1
Orientation Right Angle
Pitch 2.0066 mm
RoHS Compliant
Schedule B 8536694040
Termination Solder
Voltage Rating 125 V
Win Source Part Number 1163997-502352-1000
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 502352-1000 CAD Model

Description

The Male Pin Right Angle Connector from Molex, LLC is a high-quality electronic component designed for use in circular connectors.

  • Connector Type: Male Pin
  • Application: Circular Connectors
  • Manufacturer: Molex, LLC
  • Pitch: 2.0066 mm
  • Positions: 10
  • Contact Plating: Tin
  • Voltage Rating: 125 V
  • Current Rating: 3 A
  • Orientation: Right-Angle
  • Termination: Through-Hole
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 105 °C
