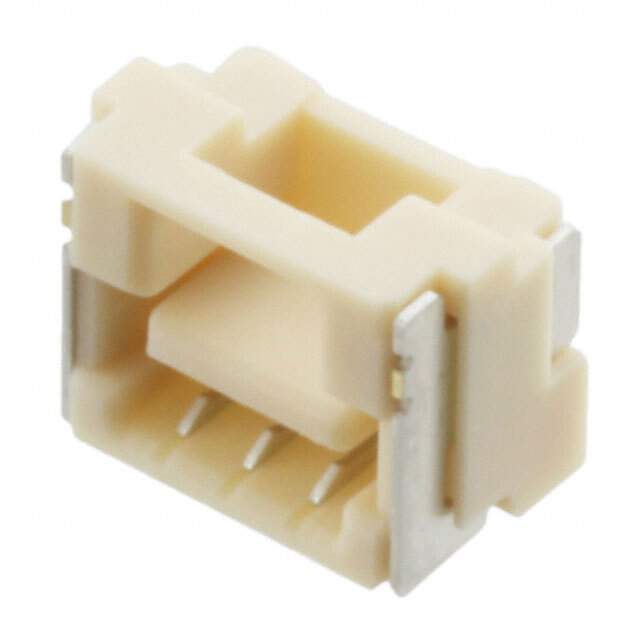

5023820372 Real Image
Same model may have multiple batches, images only for reference.

5023820372

Part No 5023820372
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 3POS 0.049 TIN SMD / 3 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex, LLC
Series CLIK-Mate 502382
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 1
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Natural
Insulation Height 0.173" (4.40mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place, Solder Retention
Current Rating (Amps) 1A
Voltage Rating 50V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 502382
Standard Package 1,400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856280-5023820372
Ultra Librarian 3D Model Ultra Librarian 5023820372 CAD Model

Description

The 794625 is a rectangular connector header from Molex, LLC.

  • Series: CLIK-Mate 502382
  • Positions: 3
  • Capabilities: Pick and place and solder retention
  • Connector Type: Receptacle
  • Contacts: Forked
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Latch holder
  • Package: Tape & reel
  • Standard Package: 1,400 pieces
  • Contact Material: Copper alloy
  • Voltage Rating: 50V
  • Applications: Automotive, general purpose, industrial, lighting, and medical
  • Insulation Material: Resin
  • Style: Board to cable/wire
  • Pitch (Mating): 0.049" (1.25mm)
  • Contact Finish (Mating): Tin
  • Contact Finish Thickness (Mating): 39.4μin (1.00μm)
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Post): 39.4μin (1.00μm)
  • Insulation Color: Natural
  • Mounting Type: Surface mount
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • Current Rating: 1A
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
