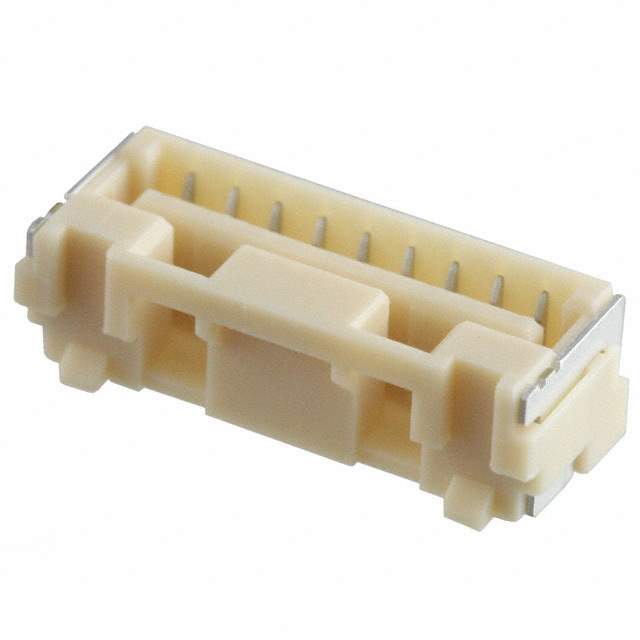

Same model may have multiple batches, images only for reference.

5023820970

Name: 5023820970
Brand: Molex, LLC
SKU: 21942
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5023820970
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 9POS 1.25MM W/B VERT
Datasheet	5023820970 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Reel - TR
Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.049" (1.25mm)
Number of Rows	1
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39μin (1.00μm)
Insulation Color	Natural
Insulation Height	0.173" (4.40mm)
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Solder Retention
Current Rating	1A
Voltage Rating	50V
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Finish Thickness - Post	39μin (1.00μm)
Win Source Part Number	115925-5023820970
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 5023820970 CAD Model

Alternative Products

Description

Product Description

The 5023820970 component offers superior performance and exceptional versatility for a multitude of electronic applications. It is designed to meet the specific requirements of developers working on sophisticated electronic systems.

Features and Benefits

Versatile functionality for a range of uses.
Advanced technology for improved performance.
Sturdy and reliable for critical operations.
Integrated design to save space and reduce complexity.

Applications

Communications technology
Energy management systems
Security and monitoring equipment
Networking devices

The 5023820970 is perfect for professionals looking for high standards in their tech solutions.
