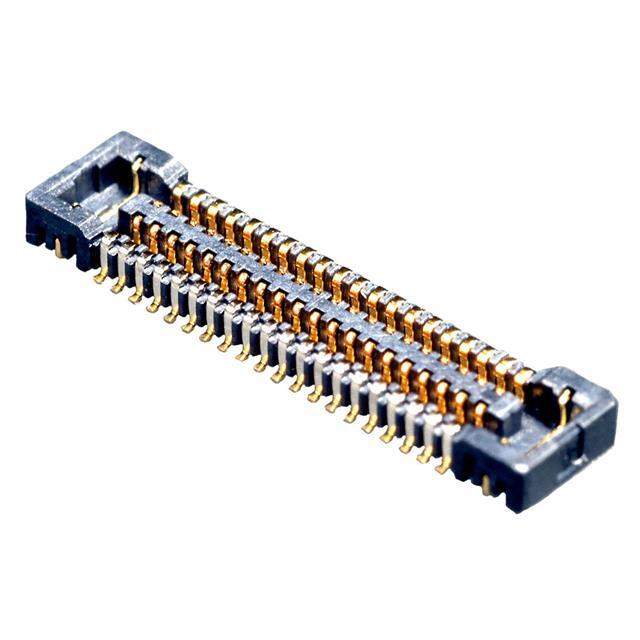

502426-2610 Real Image1 502426-2610 Real Image2
Same model may have multiple batches, images only for reference.
502426-2610 Real Image1 502426-2610 Real Image2
502426-2610 Real Image1 502426-2610 Real Image2
Same model may have multiple batches, images only for reference.

502426-2610

Part No 502426-2610
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 0.40MM PITCH SLIMSTACK BOARD-TO- / Position Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series *
Package Box
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 3,000 pcs
Win Source Part Number 1380860-502426-2610
Ultra Librarian 3D Model Ultra Librarian 502426-2610 CAD Model

Description

The edge type mezzanine connector array is a versatile component designed for board-to-board connections. Molex, LLC manufactures it.

  • Standard Package: 3000 pcs
  • Moisture Sensitivity Level (MSL): Unlimited
  • Additional Details: Available upon request
