Same model may have multiple batches, images only for reference.

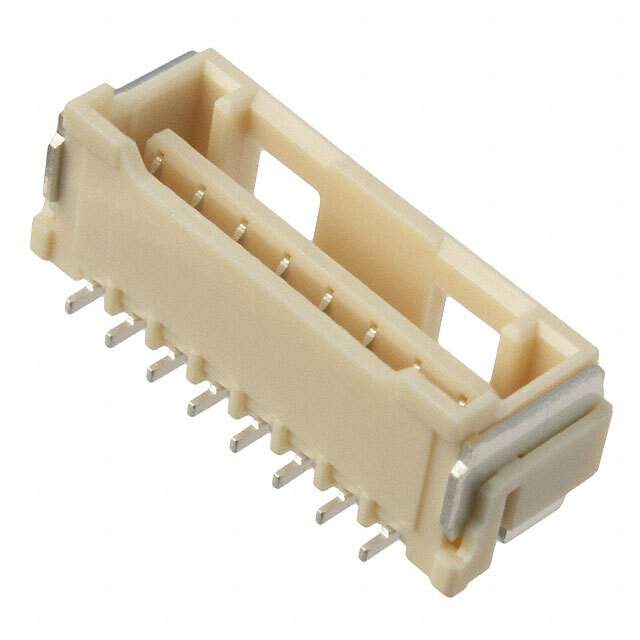

502443-0870 Real Image
Same model may have multiple batches, images only for reference.

502443-0870

Part No 502443-0870
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 8 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Forked, Receptacle
Contact Gender Female
Contact Material Copper
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Depth 6.85 mm
Fastening Type Latch
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Length 20 mm
Material Polybutylene
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250 V
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Pins 8
Number of Positions 8
Number of Rows 1
Orientation Vertical
Packaging Cut Tape
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating (AC) 250 V
Win Source Part Number 1121764-502443-0870
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 502443-0870 CAD Model

Description

The Molex, LLC 1121764-502443-0870 connector is a high-quality electronic component that is ideal for use in a variety of applications.

  • Color: Natural
  • Type: Forked, Receptacle
  • Current Rating: 3A
  • Contact Resistance: 20 mΩ
  • Housing Material: Thermoplastic
  • Temperature Range: -25°C to 85°C
  • RoHS Compliant: Yes
  • Voltage Rating: 250V
