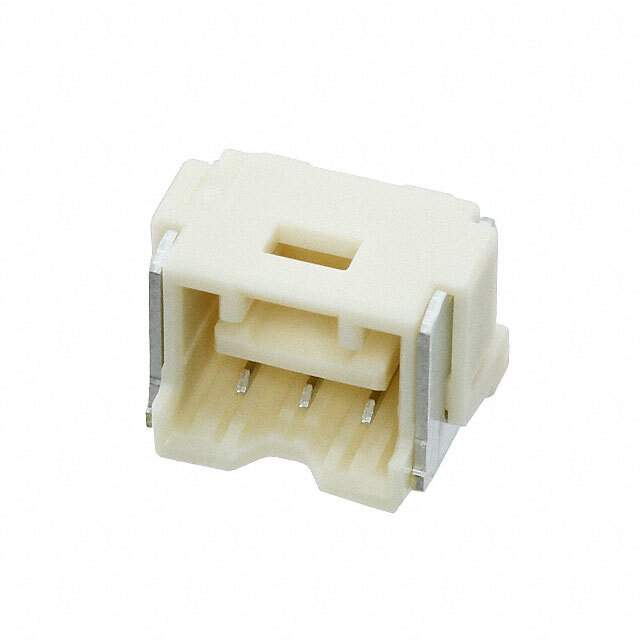

502494-0370 Real Image
Same model may have multiple batches, images only for reference.

502494-0370

Part No 502494-0370
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 3 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 105 °C
Contact Material Nickel, Tin
Contact Plating Tin
Country of Origin JP
Current Rating 3 A
Gender Receptacle
Height 7.1 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Number of Circuits 3
Number of Contacts 3
Number of Pins 3
Number of Rows 1
Orientation Right Angle
Plating Tin
RoHS Compliant
Voltage Rating 250 V
Win Source Part Number 965193-502494-0370
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502494-0370 CAD Model

Description

It has a voltage rating of 250V and a current rating of 3A. This component is equipped with 3 contacts and is a right angle orientation. It is suitable for use in various electronic applications and is RoHS compliant.
