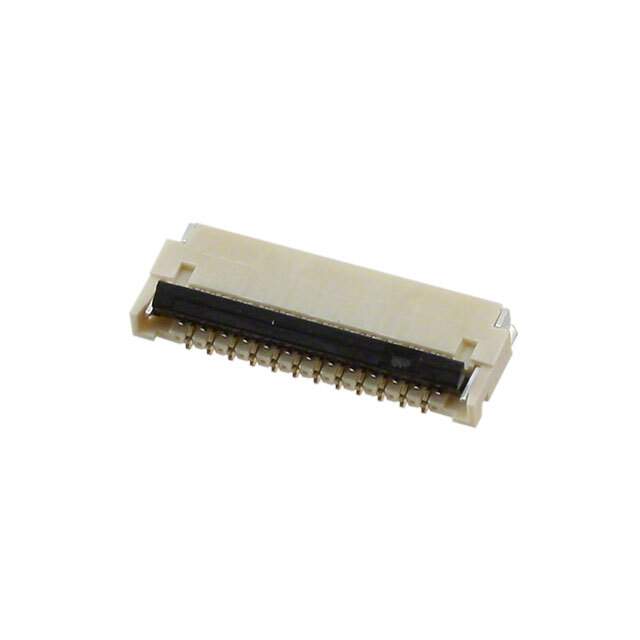

5025982593

Name: 5025982593
Brand: Molex, LLC
SKU: 759089
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5025982593
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 25POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Flat Flex Type	FPC
Mounting Style	SMT, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	25
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.045" (1.14mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Dielectric Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0, UL94 HB
Current Rating (Amps)	0.2A
Contact Finish Thickness	3.94μin (0.10μm)
Housing Color	White
Actuator Color	Black
Mating Cycles	10
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	759089-5025982593
Popularity	Low
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 5025982593 CAD Model

Alternative Products

Description

This electronic component is a connector manufactured by Molex.

Win Source Part Number: 759089-5025982593
Packaging: reel
Positions: 25
Pitch: 0.012" (0.30mm)
Mounting Style: right-angle SMT
Features: solder retention
Termination Type: solder
Contact Finish: gold with a thickness of 3.94μin (0.10μm)
Contact Material: phosphor bronze
Voltage Rating: 50V
Height Above Board: 0.045" (1.14mm)
Suitable for: FPC flat flex types
Locking Feature: flip lock and backlock
Housing Color: white
Dielectric Material: liquid crystal polymer (LCP)
Material Flammability Rating: UL94 V-0 and UL94 HB
Temperature Range: -40°C to 85°C
Mating Cycle: 10
