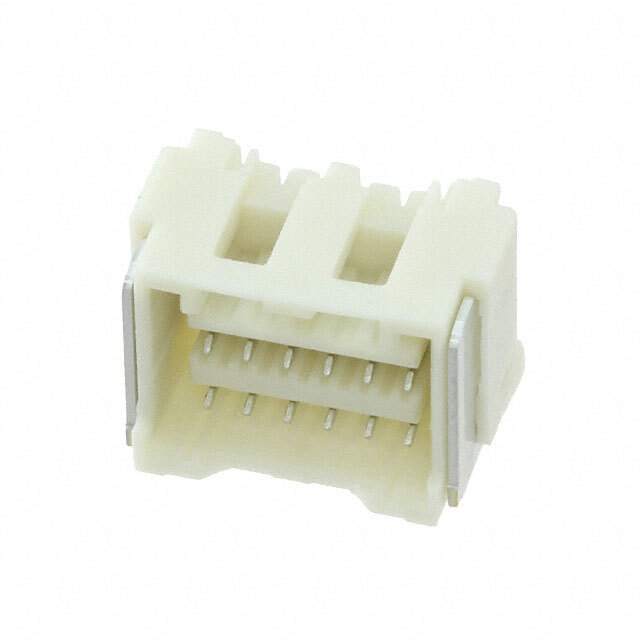

Same model may have multiple batches, images only for reference.

5031481290

Name: 5031481290
Brand: Molex, LLC
SKU: 1332969
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5031481290
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 12P 0.059 TIN SMD R/A / 12 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.059" (1.50mm)
Number of Rows	2
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Beige
Insulation Height	0.360" (9.14mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place, Solder Retention
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	503148
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM14476DKR,503148-1290,WM14476TR,WM14476CT,5031481290-ND
Standard Package	550
Win Source Part Number	1332969-5031481290
Ultra Librarian 3D Model	Ultra Librarian 5031481290 CAD Model

Alternative Products

Description

This electronic component is a connector that is manufactured by Molex.

Connector Type: Female Socket
Positions: 12
Packaging: Reel
Connector Type: Receptacle
Contact Type: Forked
Applications: Automotive, General Purpose, Industrial, Lighting, and Medical
Mounting Style: Surface Mount
Orientation: Right-Angle
Pitch: 0.059 inches
Contact Finish: Tin
Voltage Rating: Not Specified
ROHS3 Compliant: Yes
