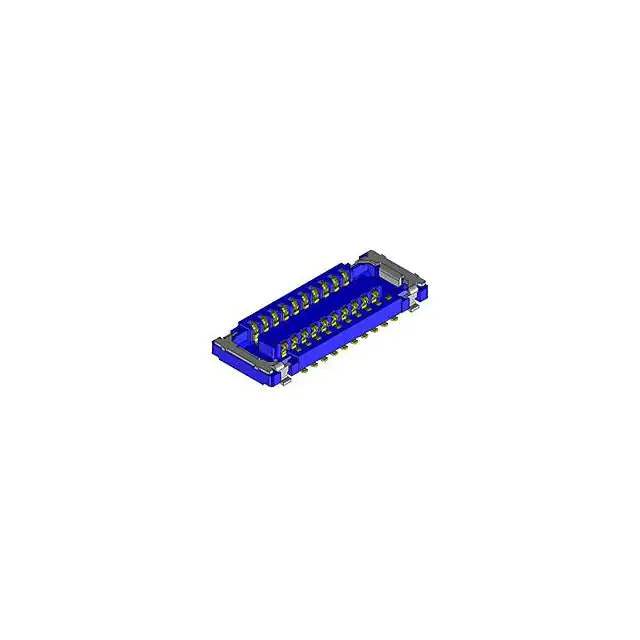

Same model may have multiple batches, images only for reference.

503772-4010

Name: 503772-4010
Brand: Molex, LLC
SKU: 856311
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	503772-4010
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	SLIMSTACK BOARD-TO-BOARD CONNECT / Position Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Molex, LLC
Series	*
Package	Box
Product Status	Active
Standard Package	3,000 pcs
MSL Level	Vendor Undefined
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856311-503772-4010
Ultra Librarian 3D Model	Ultra Librarian 503772-4010 CAD Model

Alternative Products

Description

The 856311-503772-4010 is a rectangular connector array designed for edge type and mezzanine (board to board) connections.

Manufacturer: Molex, LLC
Series: Unspecified
Package: Box
Standard Package: 3,000 pieces
MSL Level: Vendor undefined
REACH Status: Available upon request
HTSUS Code: 8536.69.4040
Product Status: Active
