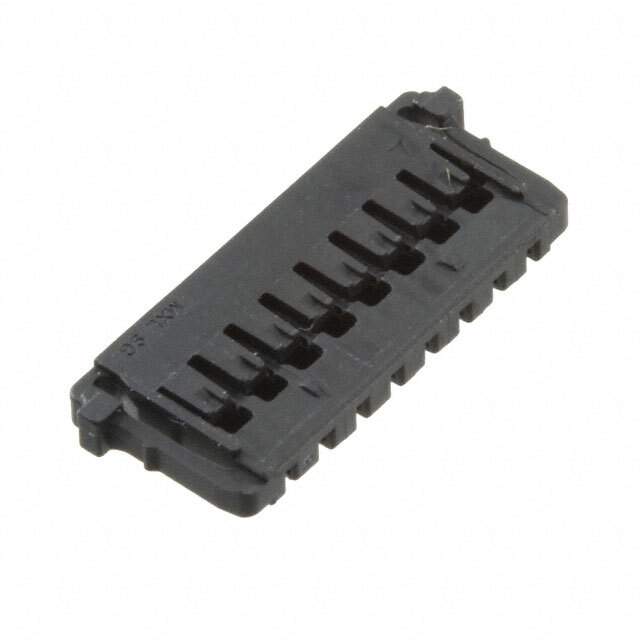

504051-0801 Real Image
Same model may have multiple batches, images only for reference.

504051-0801

Part No 504051-0801
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 8 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Socket
Country of Origin US
Current Rating 2 A
Depth 6.4 mm
Fastening Type Detent
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material Thermoplastic
Length 15.95 mm
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Free Hanging
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 1.5 mm
REACH SVHC No SVHC
RoHS Compliant
Termination Crimp
Win Source Part Number 1124580-504051-0801
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 504051-0801 CAD Model

Description

The 1124580-504051-0801 is a receptacle socket connector from Molex, LLC.

  • Positions: 8
  • Pitch: 1.5mm
  • Color: Black
  • Connector Type: Detent Fastening
  • Termination: Crimp
  • Current Rating: 2A
  • Number of Contacts: 8
  • Gender: Receptacle
  • Length: 15.95mm
  • Depth: 6.4mm
  • Housing Material: Thermoplastic
  • Orientation: Straight
  • Housing Color: Black
  • Category: Circular Connectors - Housings
  • Halogen-Free: Yes
  • RoHS: Compliant
  • Minimum Operating Temperature: -25 °C
  • REACH SVHC Status: No SVHC
  • Flammability Rating: UL94 V-0
  • Glow Wire Compliance: Non-compliant
  • Supply and Demand Status: Limited
  • Made in: US
