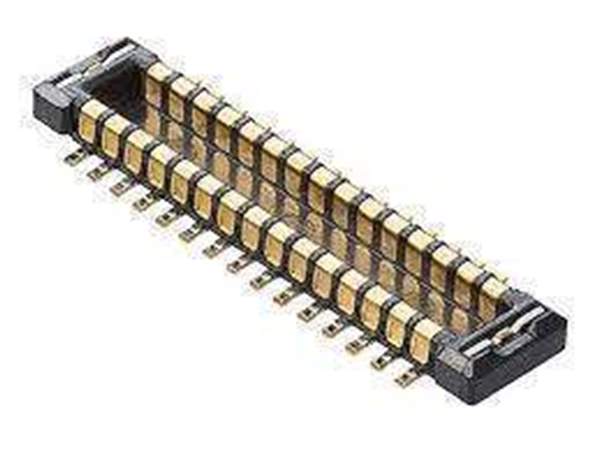

Part No 505551-1020
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description Board to Board & Mezzanine Connectors SlimStack .4mm Conn Plug 10Ckt
Datasheet
505551-1020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Product Headers
Number of Positions 10 Position
Pitch 0.4 mm (0.016 in)
Number of Rows 2 Row
Termination Style Solder
Mounting Angle Vertical
Stack Height 0.8 mm
Current Rating 300 mA
Voltage Rating 50 V
Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian 505551-1020 CAD Model

Description

SlimStack Board-to-Board Plug, 0.40mm Pitch, B8 Series, 0.80mm Mated Height, 2.50mm Mated Width, 10 Circuits
