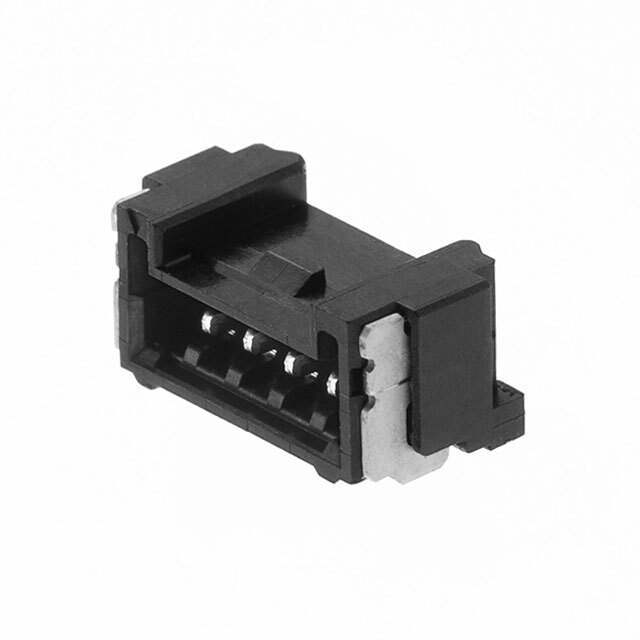

5055670471 Molex
Same model may have multiple batches, images only for reference.

5055670471

Part No 5055670471
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1.25MM
Datasheet
5055670471 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203427-5055670471
Manufacturer Molex
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Series Micro-Lock PLUS 505567
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian 5055670471 CAD Model

Description

Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
