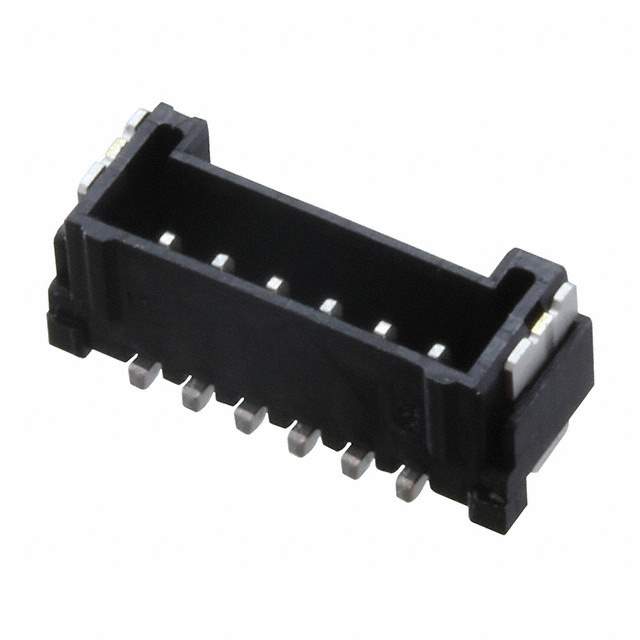

505568-0671 Real Image
Same model may have multiple batches, images only for reference.

505568-0671

Part No 505568-0671
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 6 POS 1.25mm Solder ST Top Entry SMD Micro-Lock Plus T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 105 °C
Contact Material Nickel, Tin
Country of Origin MY
Current Rating 1.5 A
Height 4.4 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Number of Circuits 6
Number of Contacts 6
Number of Rows 1
Orientation Vertical
RoHS Compliant
Voltage Rating 50 V
Win Source Part Number 1038993-505568-0671
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 505568-0671 CAD Model

Description

The Molex 1038993-505568-0671 is a circular connector housing that is designed for use in electronic devices.

  • Height: 4.4mm
  • Maximum Operating Temperature: 105°C
  • ECCN Compliant: EAR99
  • Series: Molex
  • Alternative Parts Cross-Reference Numbers: 505568-0671505568-0671, 5055680671, and 5055680671
  • Country of Origin: MY
  • RoHS Compliant: Yes
